S1 stencil printer    stencil printers
Description

Stencil printer S1


  • Stencil printer S1
  • Technical data
  • Stencil size
  • max. 395 x 280 mm
  • stencil lenght and wide variabel
  • stencils with or without perforation acceptable
  • adaptable rapid tensioning system - 2 fold
  • PCB size
  • max. 300 x 250 mm
  • Printing area
  • max. 300 x 240 mm
  • Squeegee
  • Manual – metal blade
  • Printing
  • Single or double-sided PCB
  • Off-Contact (Z -axis) Range
  • 0 – 22 mm
  • Table - X, Y / Theta Adjustment
  • +/- 10 mm / +/- 2
  • Adjustment accuracy
  • +/- 0,01 mm
  • Dimensions and weight
  • 530 x 370 x 130 mm / 20 kg
  • Application area
  • suitables for prototypes and small volume production
  • screen- or stencilprinting of glue, solder paste or another substances
  • minimum pitch of pads 0,4mm
  • Stencil with perforation - length and width variable

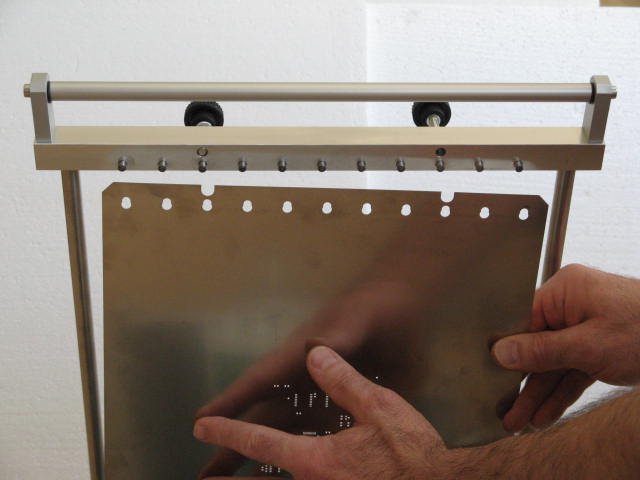

  • Mounting of the stencil with perforation

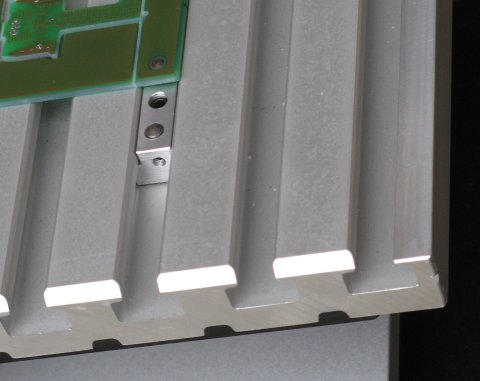

  • Fixing of the PCB on the table
