D30 liquid dispensing system    dispensing systems
Description

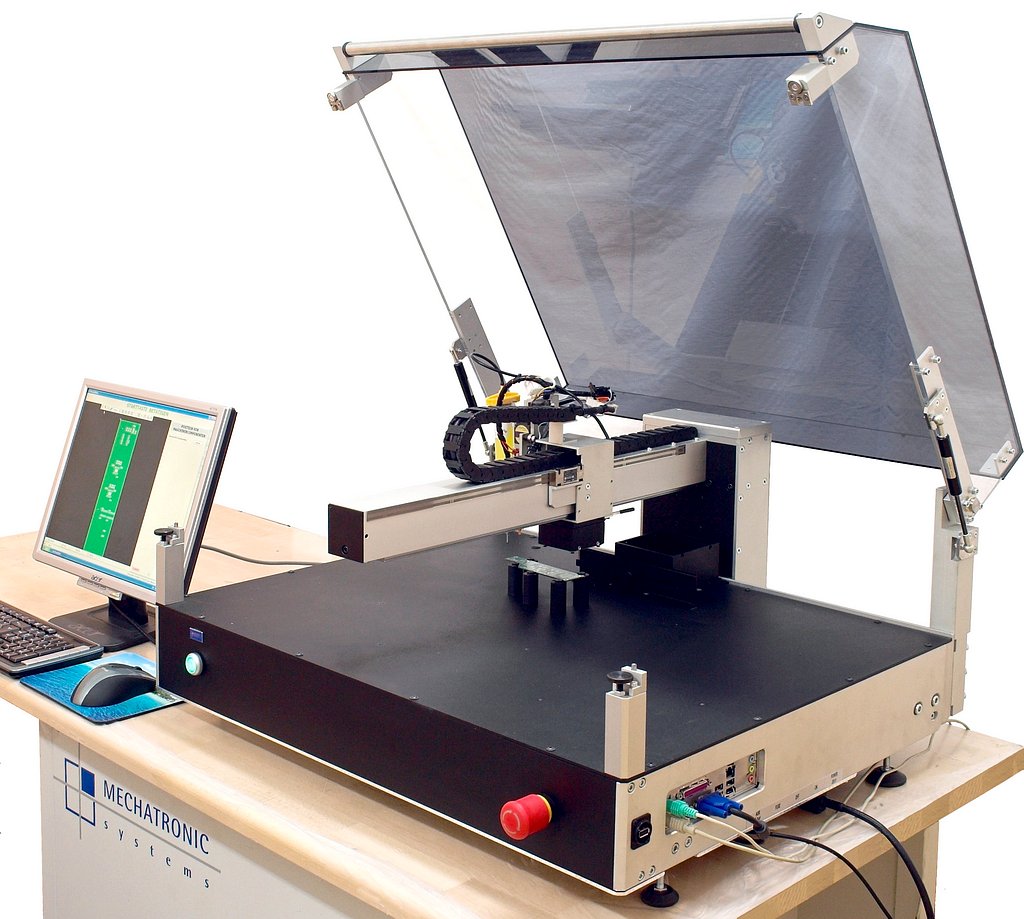

precision automatic liquid dispensing system D30-H


    • Technical data
    • PCB
    • max. dispensing area 400x500mm
    • Valve
    • Jet valve - for hight viscosity media
    • Speed
    • over 20 000 dots/ Std.
    • Distance measurement
    • contactless
    • Resolution
    • X / Y -axis : 0,008mm - linear encoder
    • Z -axis : 0,02mm - linear encoder
    • Accuracy
    • +/- 0,04mm mm
    • Dimensions and wight
    • 800 x 700 x 350mm / ca . 85 kg
    • Supply
    • 230V-50Hz -350W / 0,6 MPa - 15l/min
    • Key features
    • precision dispensing machine
    • contactless jet valve
    • Top kamera for fiducial
    • Image processing
    • Gerber Editor for dispensing programm
    • Graphic Editor
    • Operating systen Windows 10
    • Option: the automatic dispenser D30-H can also be equipped with two different dispensing heads
    • Application area
    • low- to medium volume production
    • precision dispensing of SMT glu, solder paste, thermal grease , conductive adhesives
    • the automatic dispenser D30-H can also be equipped with two different dispensing heads
    • precision automatic dispensing process with one or more medium
    • the automatic dispenser D30-H are available in both the desktop and in the inline version
    • microdispensing of various media
    • option: dispensing of lines and contours
