D1 Dispenser – Compact System for Controlled Media Dispensing

The D1 Dispenser is a compact, user-friendly device designed for applying low, medium, and high-viscosity materials with excellent repeatability. Whether in manual or timed mode, it offers precise control for dispensing dots, lines, or filled areas.

The integrated microcontroller allows setting dispensing times between 0.05 and 30 seconds, and the built-in adjustable vacuum prevents dripping with low-viscosity substances. Ideal for laboratory and small production use, the D1 combines flexibility, control, and portability in one efficient solution.

Key Features

  • Supports low, medium, and high-viscosity materials
  • Manual or scheduled operation with foot pedal or hand trigger
  • Dispensing time programmable from 0.05 to 30 seconds
  • Integrated vacuum restraint system to prevent dripping
  • Lightweight and compact design (2.2 kg, 235 × 225 × 63 mm)
  • Operates on 230V / 50Hz power and 2.5–7.0 bar compressed air

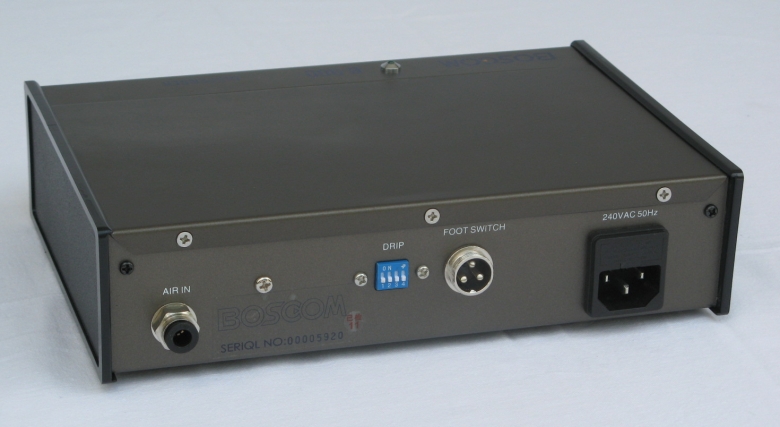

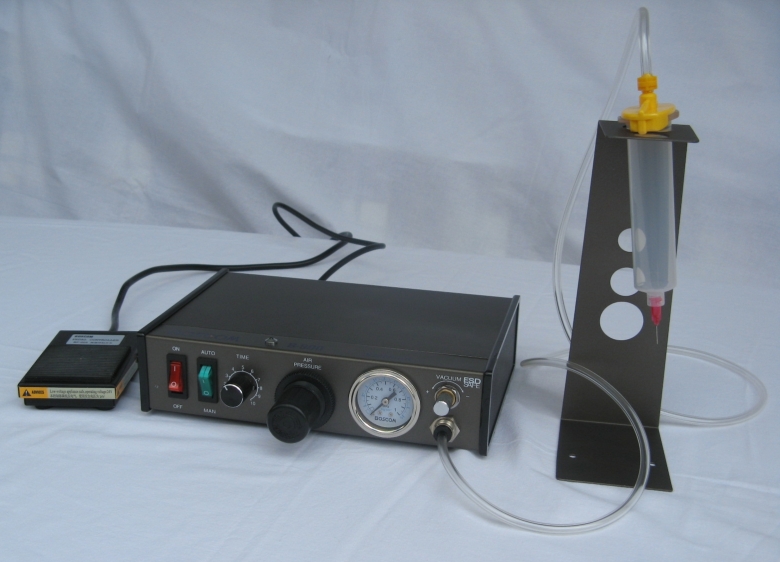

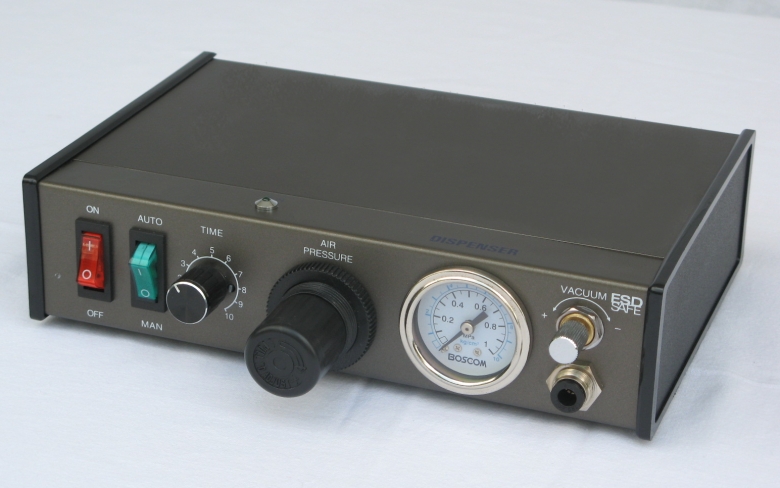

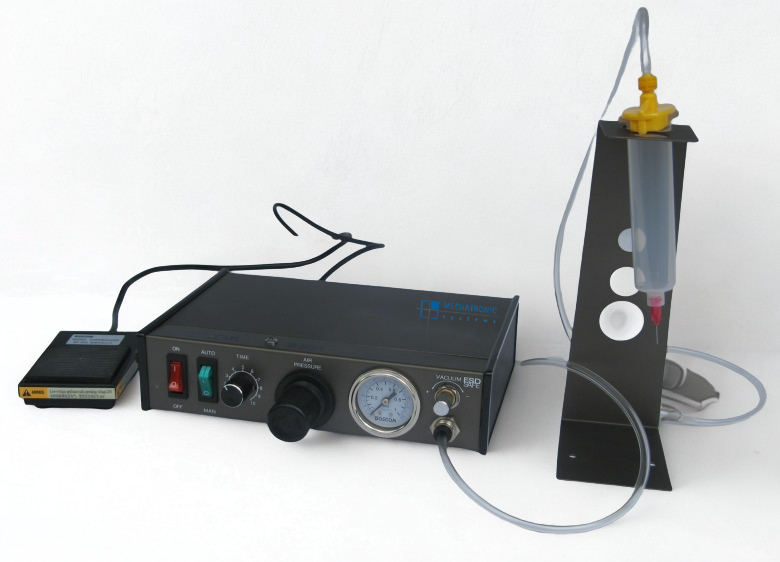

D1 thumbnail D1 thumbnail D1 thumbnail

Everything You Need to Start Dispensing – Included in One Set

The D1 Dispenser comes as a complete, ready-to-use kit, making setup simple and hassle-free. Inside the box, you’ll find a control unit with a built-in manometer, a convenient footswitch, and a hand trigger for manual operation. The set also includes three connection hoses and three dispensing cartridges, each with corresponding adapters for 5, 10, and 15 ml volumes. For versatile application, you get five metal and five plastic needles – perfect for a wide range of viscosities and precision needs. All components are carefully selected to provide a clean, controlled, and user-friendly dispensing experience.

Everything You Need to Start Dispensing – Included in One Set
