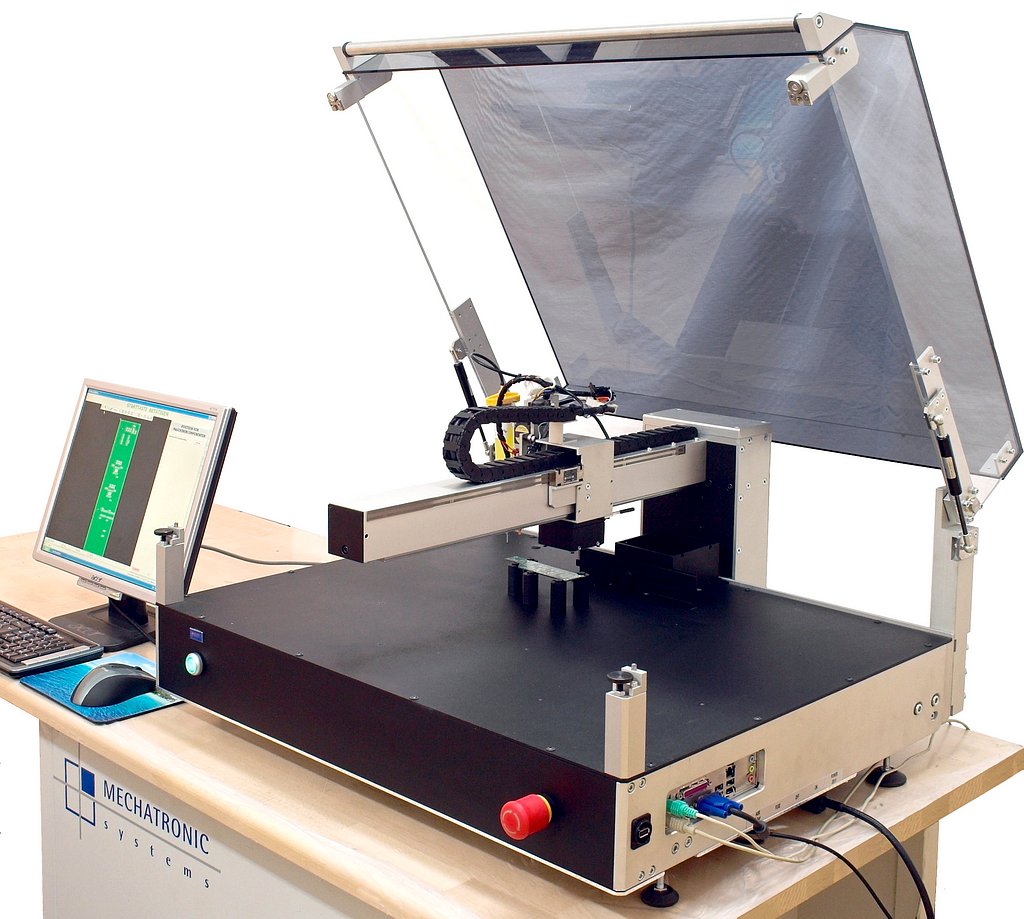

High-Speed Precision Dispensing with the D30-H
The D30-H automatic dispenser is tailored for high-viscosity media, featuring a jet valve capable of dispensing over 20,000 dots per hour. It offers a maximum dispensing area of 400 × 500 mm, with contactless distance measurement for precise operation.
Equipped with high-resolution linear encoders on the X/Y axes (0.008 mm) and Z axis (0.02 mm), it achieves an accuracy of ±0.04 mm. The machine measures 800 × 700 × 350 mm and weighs approximately 85 kg, running on a standard 230V supply.
Key Features
- Precision dispensing machine
- Contactless jet valve
- Top camera for fiducial
- Image processing
- Gerber editor for dispensing program
- Graphic editor
- Operating system Windows 10
- Option: can be equipped with two different dispensing heads
- Suitable for low- to medium volume production
- Precision dispensing of SMT glue, solder paste, thermal grease, conductive adhesives

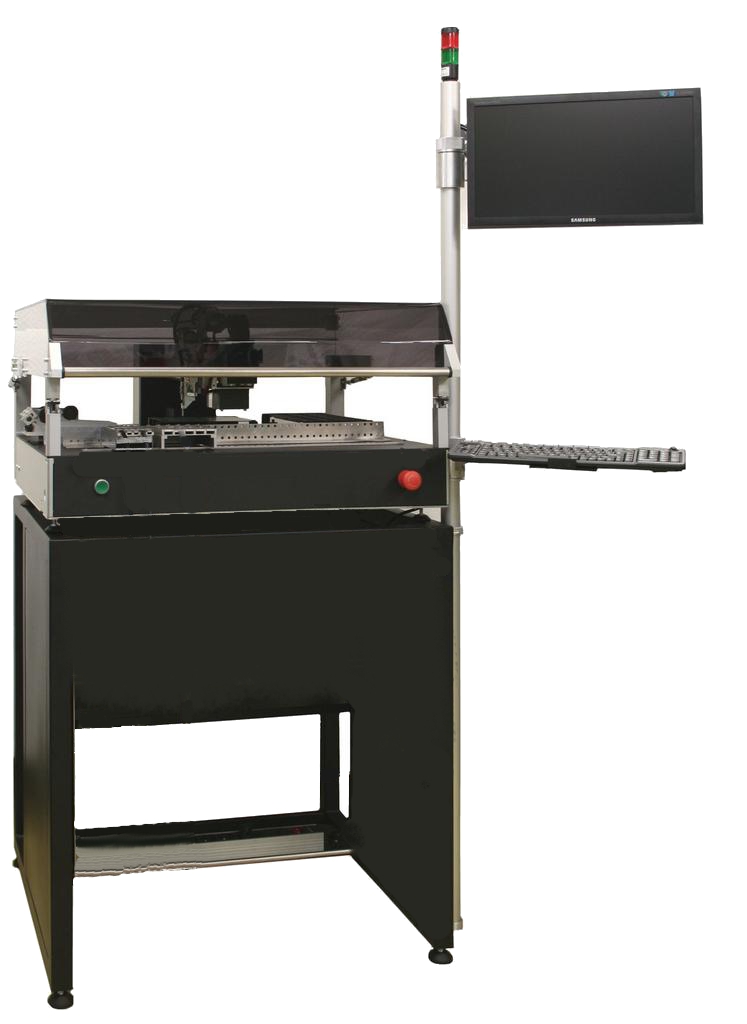

- Available in both desktop and inline versions
- Microdispensing of various media
- Optional dispensing of lines and contours
D30-H in action
Overview of the D30-H dispenser in action
Results and performance highlights of the D30-H dispenser
Demonstration of dispensing capabilities and process
×
