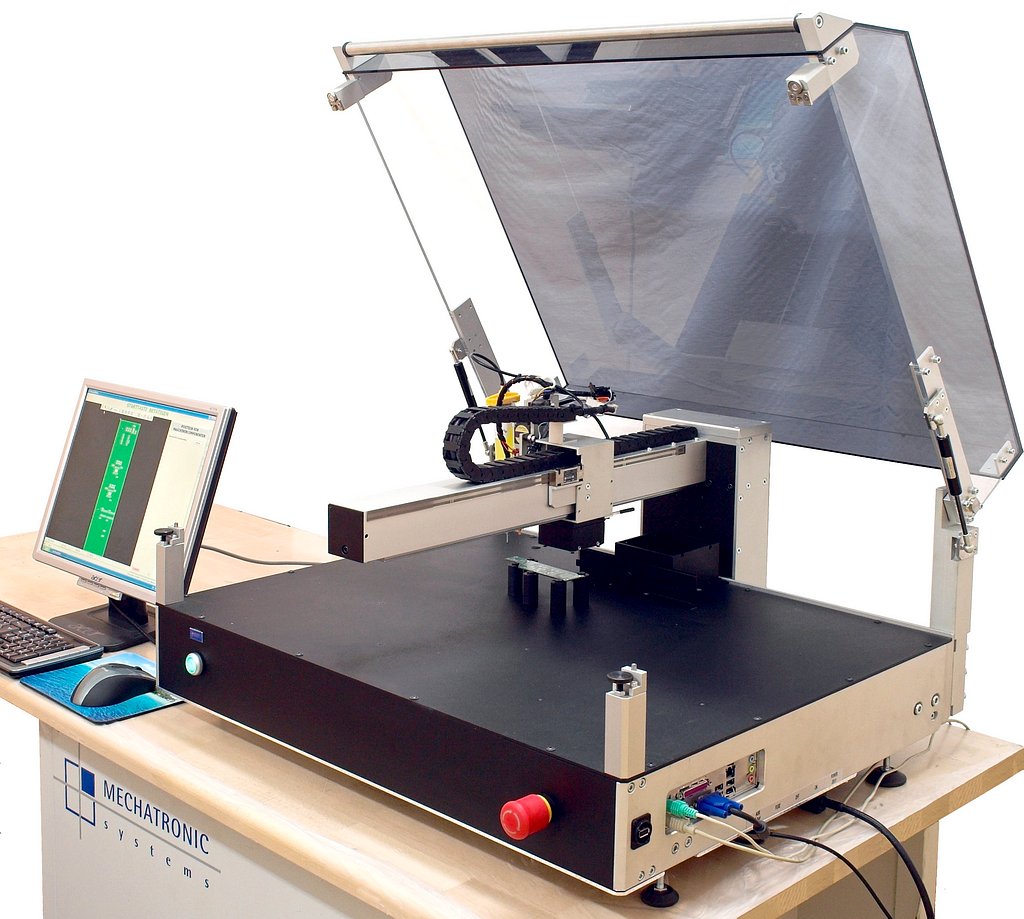

High-Speed Precision Dispensing for Low Viscosity Media with D30-L
The D30-L automatic dispenser is optimized for low viscosity media with a high-speed jet valve capable of dispensing over 20,000 dots per hour. It uses contactless distance measurement and precision linear encoders for exact X, Y (0.008 mm) and Z (0.02 mm) positioning, delivering accuracy within ±0.04 mm.
Its dispensing area supports PCBs up to 400 × 500 mm. Compact yet powerful, the D30-L measures 800 × 700 × 350 mm and weighs approximately 85 kg, operating on a standard 230V power supply.
Key Features
- Precision dispensing machine
- Contactless jet valve
- Top camera for fiducial
- Image processing
- Gerber Editor for dispensing program
- Graphic Editor
- Operating system Windows 10
- Option: the automatic dispenser D30-L can also be equipped with two different dispensing heads
- Low- to medium volume production
- Precision dispensing of UV glue, SMT glue, thermal grease, coating of materials
- Precision automatic dispensing process with one or more media

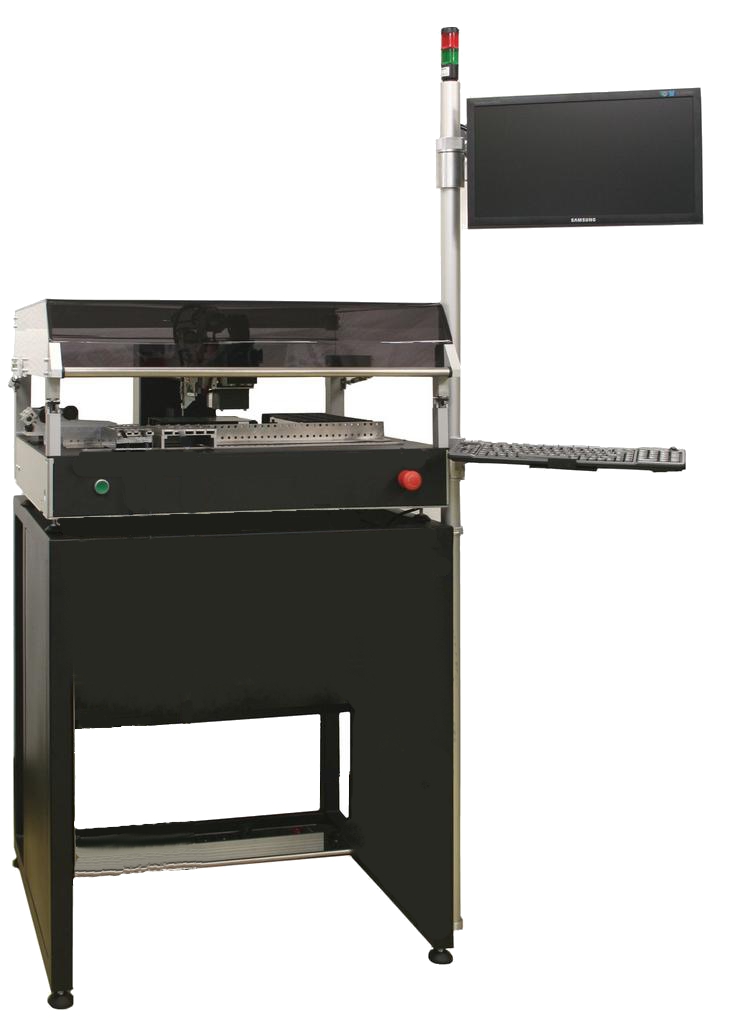

- Available in both desktop and inline versions
- Microdispensing of various media
- Option: dispensing of lines and contours
×
