Precision Jet Valve Dispensing for High-Viscosity Media

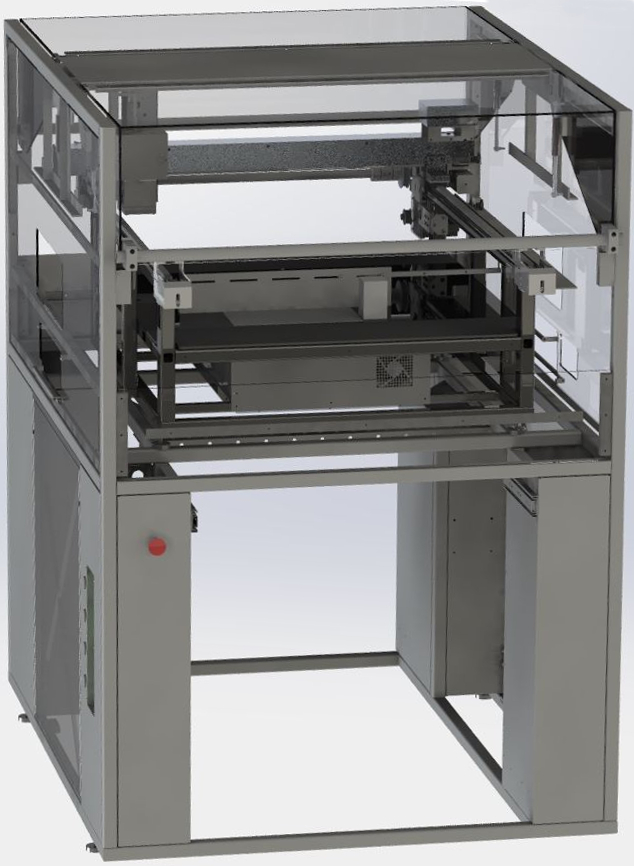

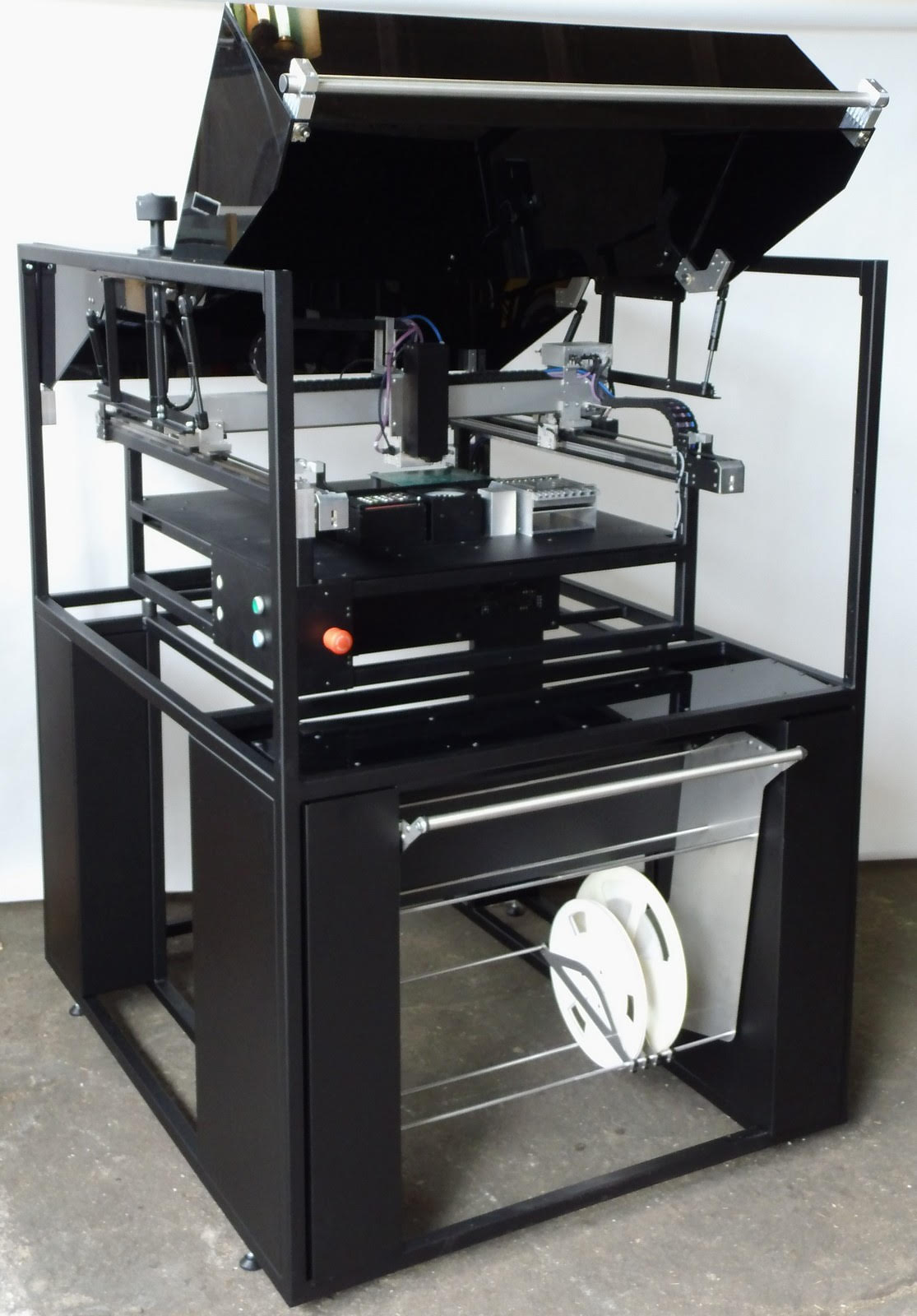

The D40-H PCB dispenser is engineered for high-precision application of high-viscosity materials over a large area of 680 x 500 mm. Utilizing an advanced jet valve system, it achieves speeds exceeding 20,000 dots per hour with contactless distance measurement to ensure exact placement.
With fine resolution on the X/Y axes (0.008 mm) and Z-axis (0.02 mm), plus an accuracy of ±0.04 mm, the D40-H is ideal for demanding dispensing tasks in modern electronics production. Its robust design measures 1050 x 950 x 550 mm and weighs approximately 155 kg, supporting efficient and reliable operation.
Key Features
- Precision dispensing machine
- Contactless jet valve
- Top camera for fiducial
- Image processing
- Gerber Editor for dispensing program
- Graphic Editor
- Operating system Windows 10
- Option: can be equipped with two different dispensing heads
- Application area: medium to large series production
- Precision dispensing of SMT glue, solder paste, thermal grease, conductive adhesives
- Precision automatic dispensing process with one or more media
- Available in desktop and inline versions
- Microdispensing of various media
- Option: dispensing of lines and contours
×
