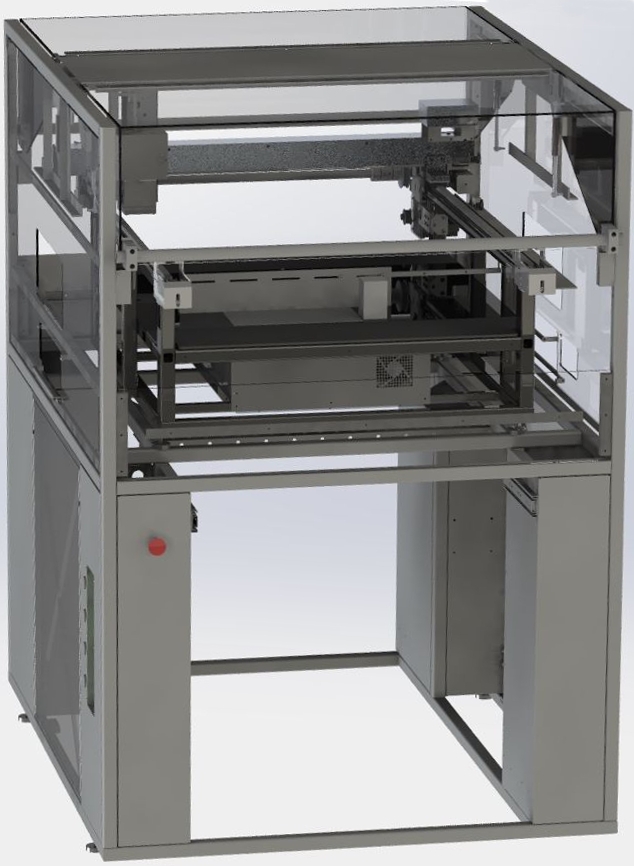

Dispenser D40-L

Automatic dispensing system for low-viscosity media with vision

High-Speed Precision Dispensing for Low Viscosity Media

The D40-L dispenser is designed for precise and efficient application of low viscosity materials. Featuring a contactless jet valve and high-speed dispensing with over 20,000 dots per hour, it ensures accuracy with linear encoders providing resolutions down to 0.008 mm on X/Y axes and 0.02 mm on the Z axis.

Compact and reliable, it supports medium to large series production with a maximum dispensing area of 680 × 500 mm. The system runs on Windows 10 and offers flexible operation with stable power supply requirements.

Key Features

  • Universal precision dispensing machine
  • Contactless jet valve
  • Top camera for fiducial
  • Gerber Editor for dispensing program
  • Graphic Editor
  • Operating system Windows 11
  • Optional: The D40-L automatic dispenser can be equipped with two different dispensing heads
  • Application area: medium to large series production
  • Precision dispensing of low-viscosity media
  • Precise automatic dispensing process with one or multiple media
  • Available as standalone or inline version
  • Microdispensing of various media
  • Optional: Dispensing of lines, contours, or coating

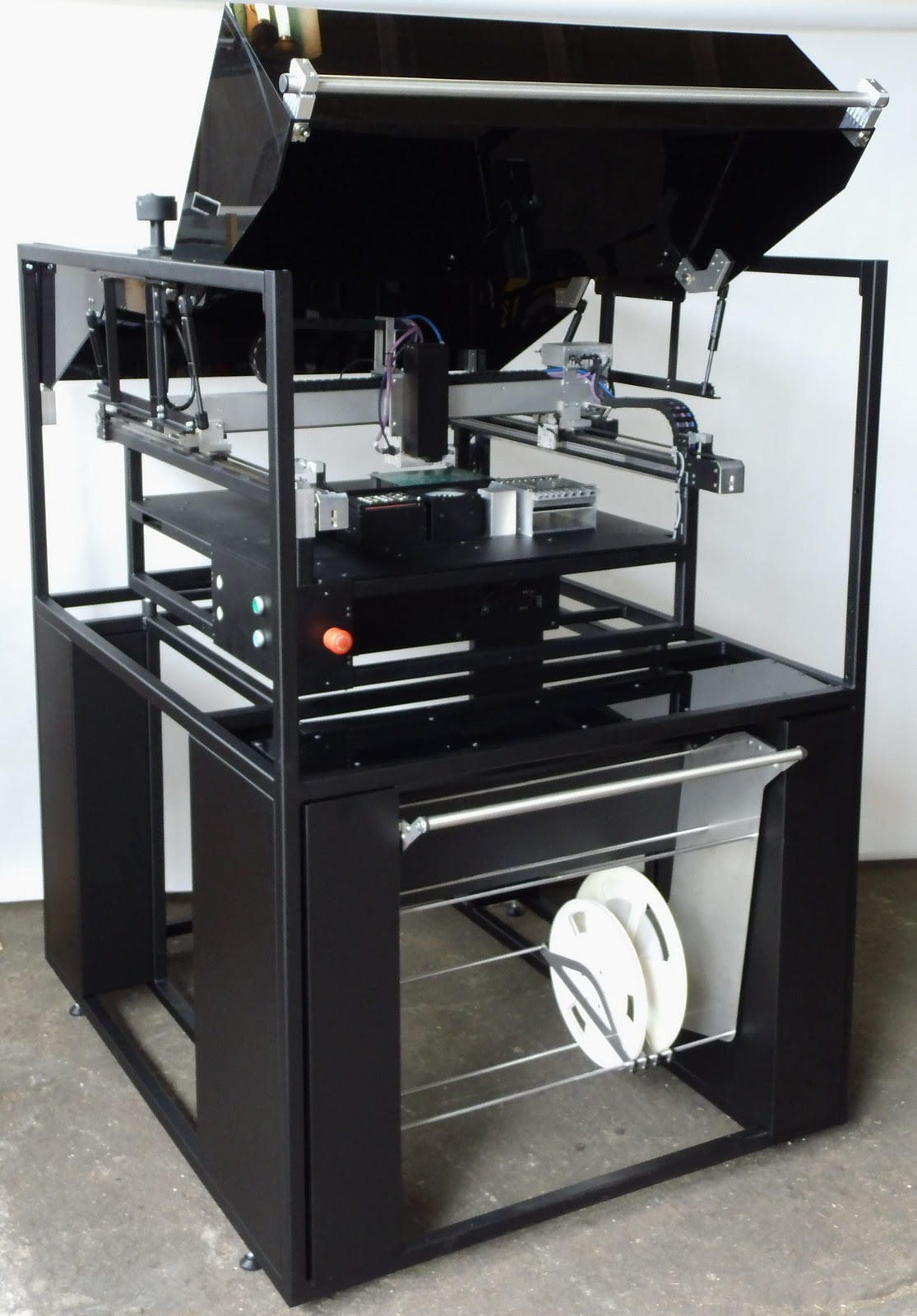

D40-L thumbnail
