Pick and Placer M1

Manual High-Precision Pick and Place System for Prototyping

Manual Pick and Place System for SMT Assembly

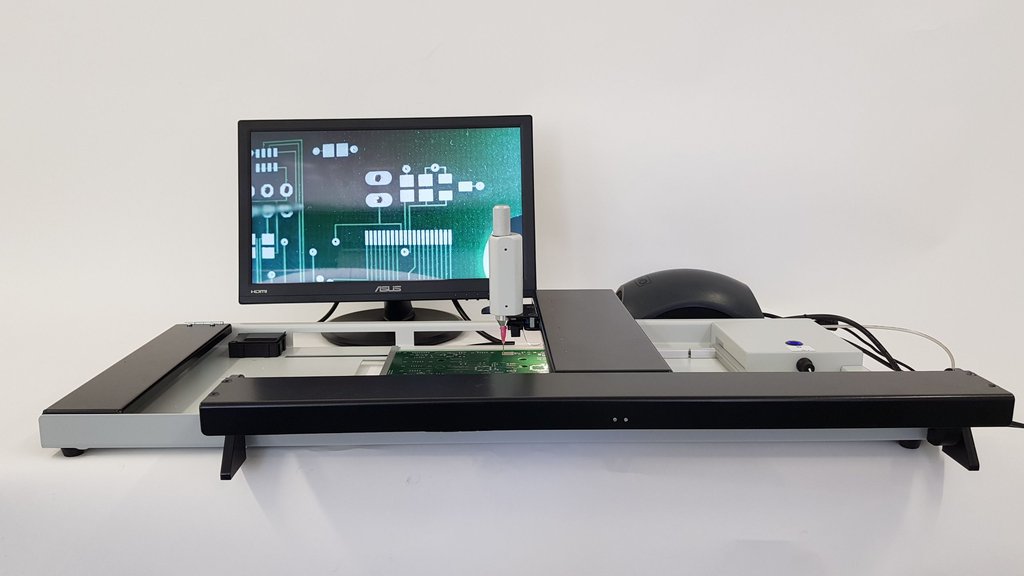

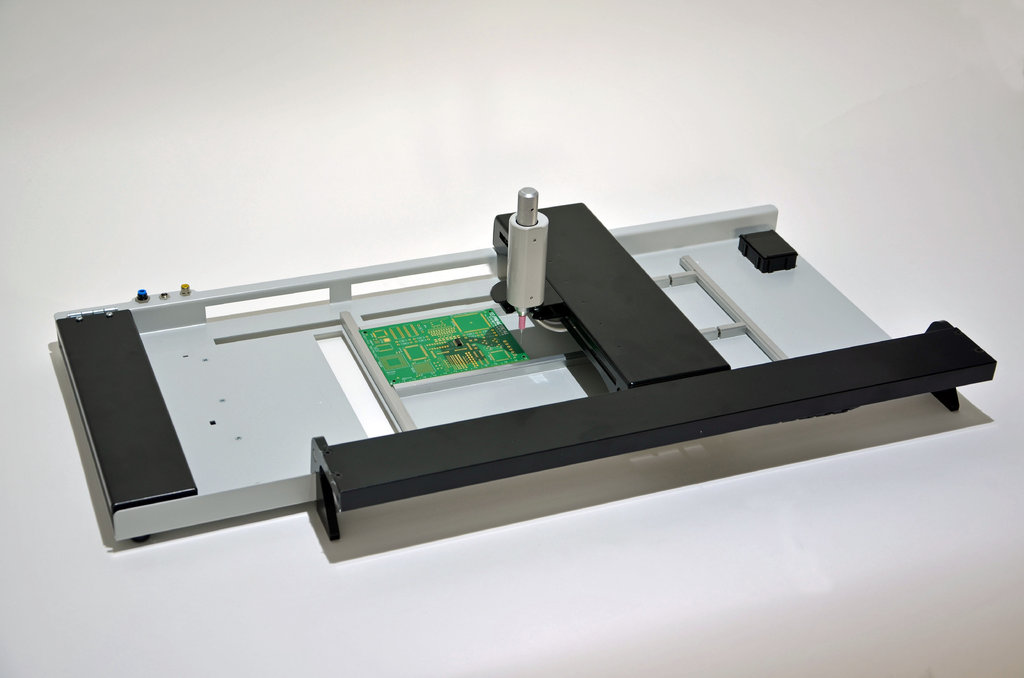

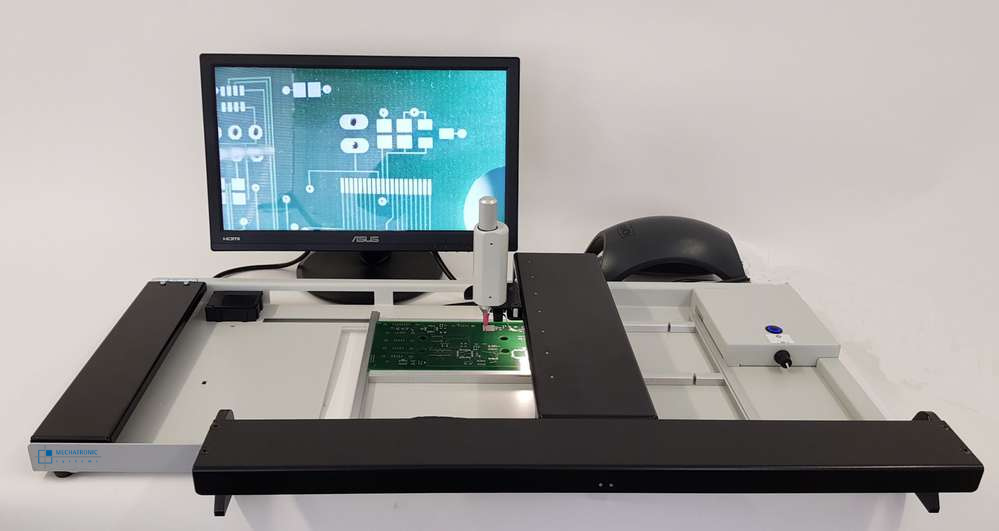

The M1 is a compact manual pick and place system designed for precise and controlled placement of SMD components during prototyping or small-scale assembly. Supporting PCB sizes up to 200 × 240 mm, it offers ergonomic operation with a precision-guided placement arm and vacuum pick-up pen.

With its smooth mechanical arm, adjustable PCB holder, and intuitive interface, the M1 enables reliable handling of various SMD packages — from passives to fine-pitch ICs. Its small footprint (590 × 250 × 70 mm) and lightweight design (6.4 kg) make it ideal for labs, R&D, and training environments.

Key Features

  • Supports PCB size up to 200 × 240 mm
  • Precision manual placement arm with vacuum pick-up
  • Compact and ergonomic design
  • Compatible with a wide range of SMD components
  • Fast and reliable setup for prototyping tasks
  • Lightweight: only 6.4 kg
