Pick and placer P20

Precision automatic SMT pick & place machine with vision system

Precision SMT automatic pick & place machine with optical alignment system

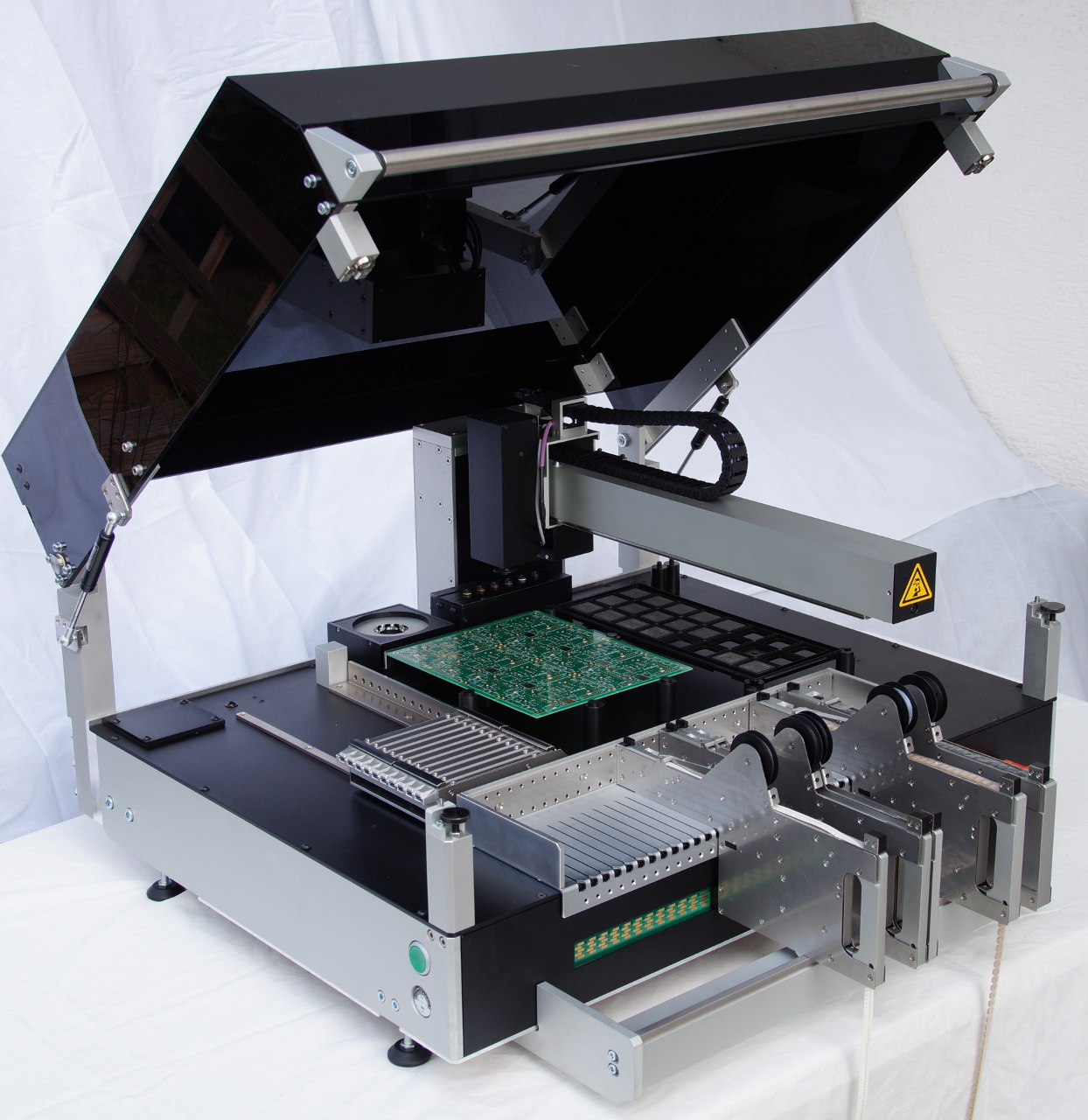

The P20 features a powerful automatic pick & place head with an automatic 6-tool nozzle changer and a top camera system for automatic fiducial recognition. The bottom optical alignment camera ensures perfect positioning of SMD components. Its intelligent feeder system supports CAN Bus communication, increasing reliability and flexibility in operation. The machine operates on Windows 10 and supports remote service via the internet.

Key Features

Precision automatic SMT pick & place machine with vision system
Automatic pick & place head with 6-tool nozzle changer
Top camera system for automatic fiducial
Bottom camera for optical alignment of SMD components
Gerber and CAD editor support
Teach-in mode with electronic manipulator
Intelligent feeder system with CAN Bus
Vision inspection of solder paste printing and component placement
Operating system: Windows 10
Remote service via internet
Graphical user interface

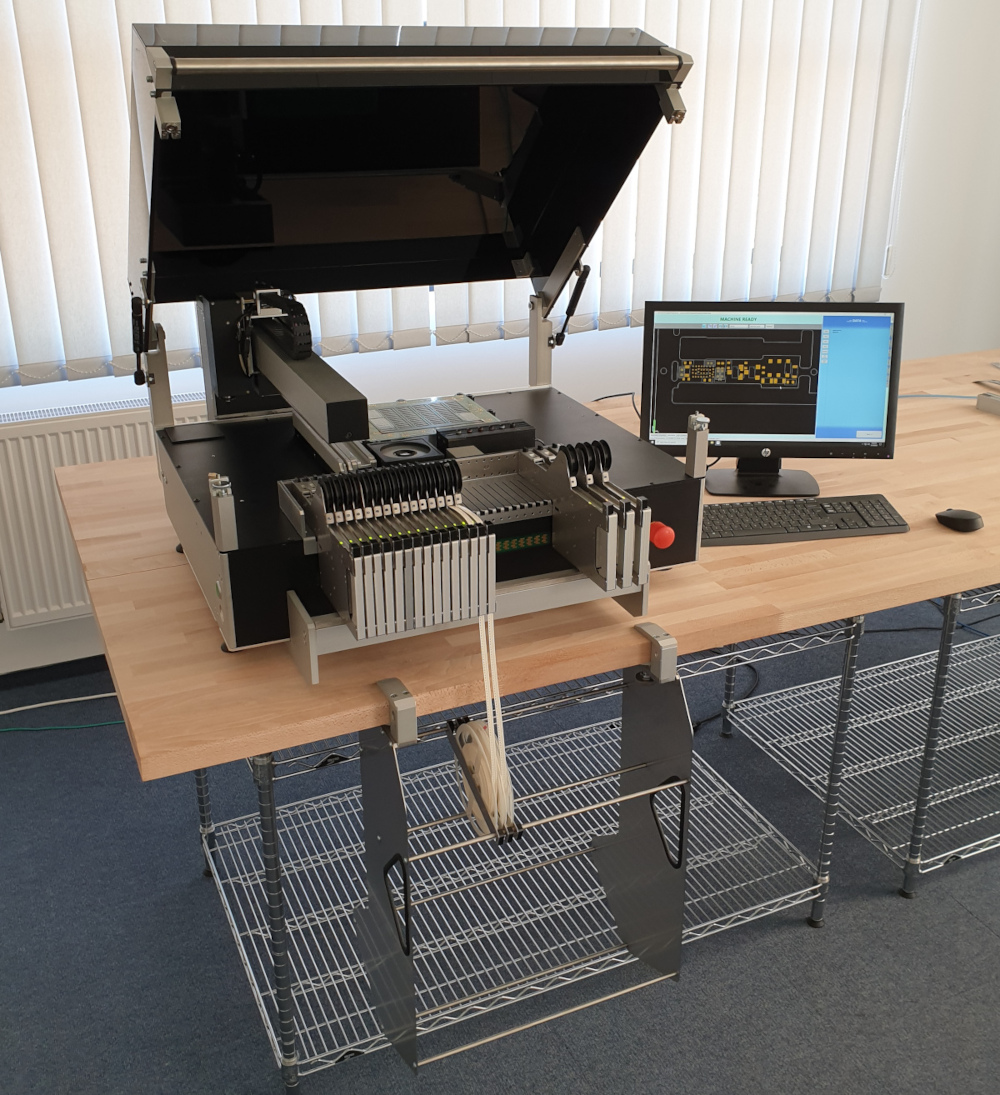

P20 in action

Demo presentation of the P20

Parts placing

Using P20 in practice

Specification
Working area	max. 540x480mm
Component range	from 0201 to 40x80mm
Minimum pitch	0,4mm
Components package	tapes / sticks / trays / bulk
Components centering	optical alignment system
Placement rate	up to 1600 cph.
Feeder capacity	max 33x8mm automatic tape feeder + 40x8mm strips feeder and 2 x (300 x 200mm) IC-tray with 200 x 300mm PCB size
Resolution	X / Y - axis: 0,008mm (linear encoder), Z - axis: 0,02mm (linear encoder), Rotation: 0,01° (rotation encoder)
Placement accuracy	+/- 0,03mm
Dimensions and weight	840 x 630 x 430 mm / ca. 95 kg
Supply	110-230V / 50-60Hz / 1250W / 0,6 MPa / 20l/min
