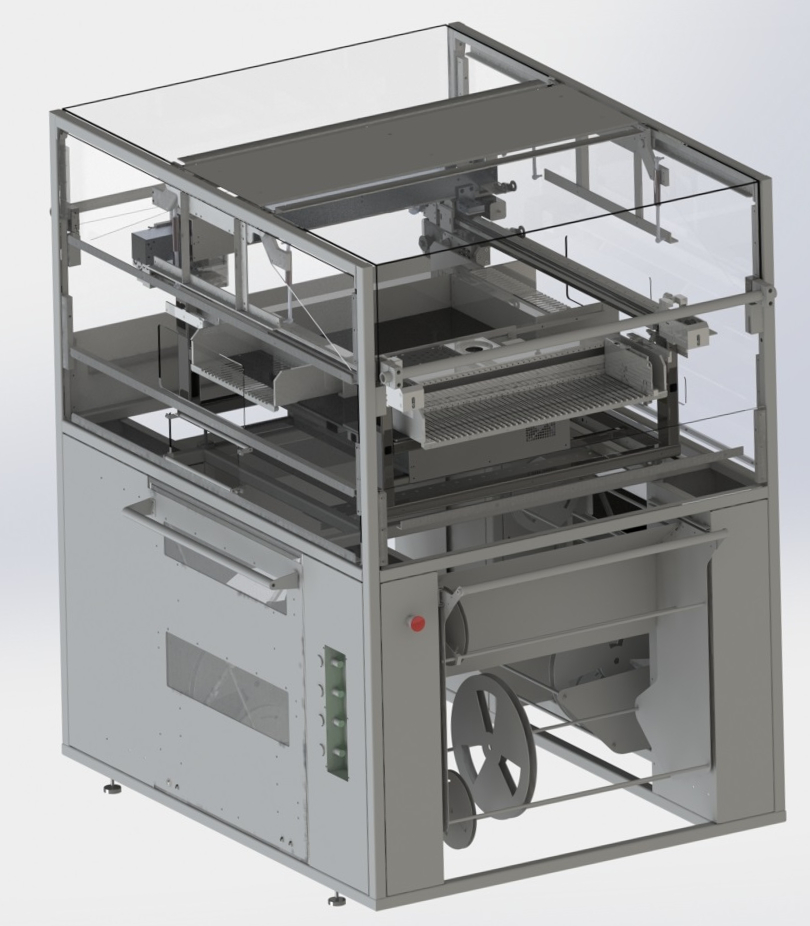

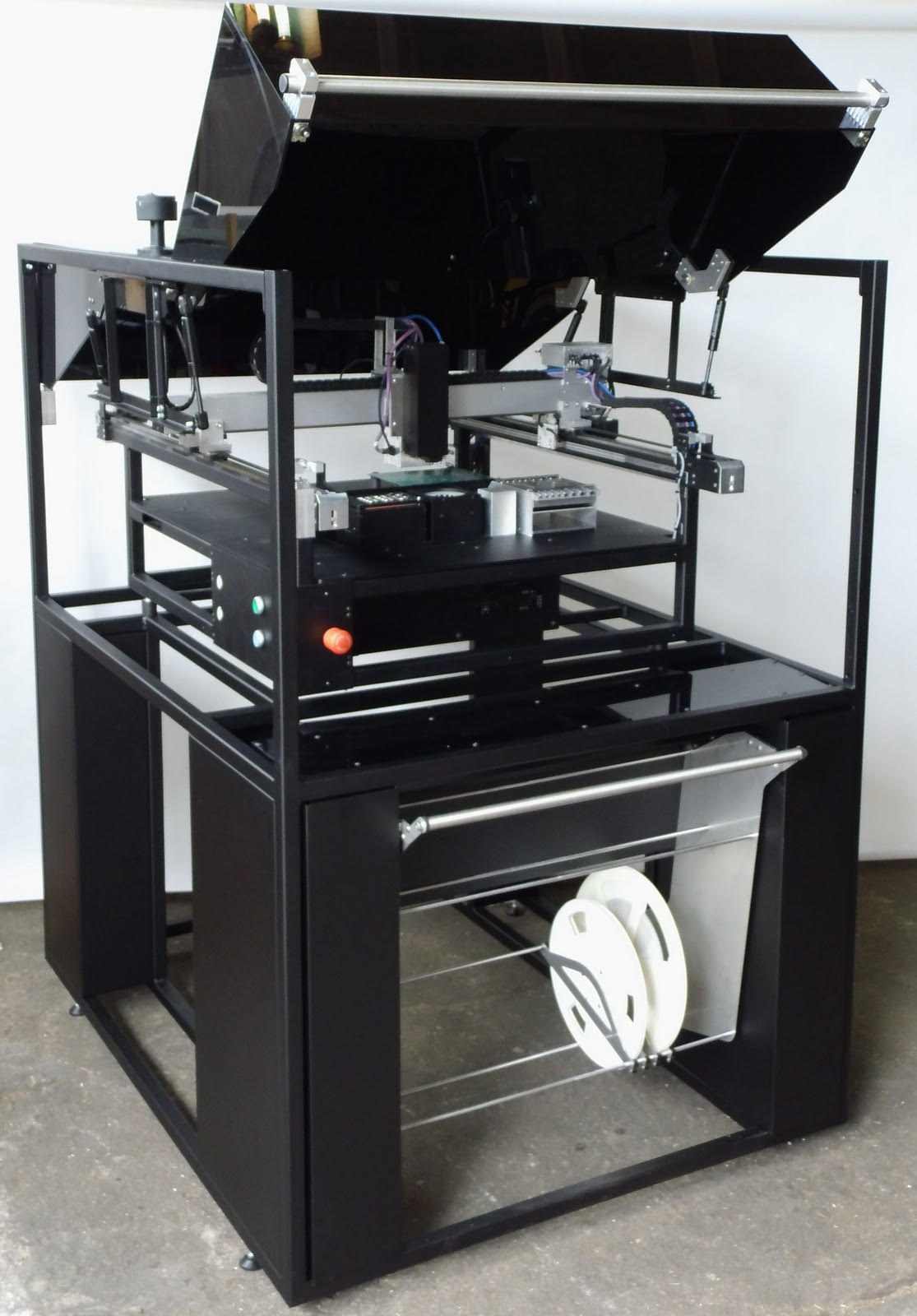

Pick and placer P40

Precision full vision SMT pick and place machine with up to 4 automatic heads

High-Speed, Multi-Head SMT Placement with Full Vision

With up to 4 automatic pick & place heads, the P40 delivers placement rates up to 4800 cph. It features a top camera system for automatic fiducial recognition and a bottom optical alignment camera for precise component placement. The smart feeder system supports up to 120 tape strips, and the machine includes a 12-tool automatic nozzle changer. Designed for standalone or conveyor-integrated operation, the P40 meets the needs of demanding production environments.

Key Features

Up to 4 automatic pick & place heads
Automatic nozzle changer (12 tools)
Top camera system for automatic fiducial
Bottom optical alignment camera
Smart feeder system with CAN Bus
Standalone or conveyor-integrated (adjustable width)
SMEMA interface included
Gerber and CAD editor support
Operating system: Windows 10
Control panel with PC keyboard and mouse
Remote service via internet

P40 Machine in Action

Watch the P40 pick and place machine demonstrating its high-speed multi-head operation, smart feeder system, and precision placement capabilities in a real production environment.

Specification
Max. PCB size	max. 660x480mm
Component range	from 0201 to 40x80mm
Minimum pitch	0,4mm
Components package	tapes / sticks / trays
Components centering	non-contact alignment
Placement rate	1 head: up to 1800 cph; 2 heads: up to 2800 cph; 4 heads: up to 4800 cph
Feeder capacity	up to 120 x 8mm automatic smart feeder
Resolution	X/Y-axis: 0,008mm (linear encoder); Z-axis: 0,02mm (linear encoder); Rotation: 0,01° (rotation encoder)
Placement accuracy	+/- 0,03mm
Dimensions and weight	1100 x 1300 x 1400 mm / ca. 165 kg
Supply	110-230V / 50-60Hz / 1350W / 0,6 MPa / min. 30 l/min
