Pick and placer P50

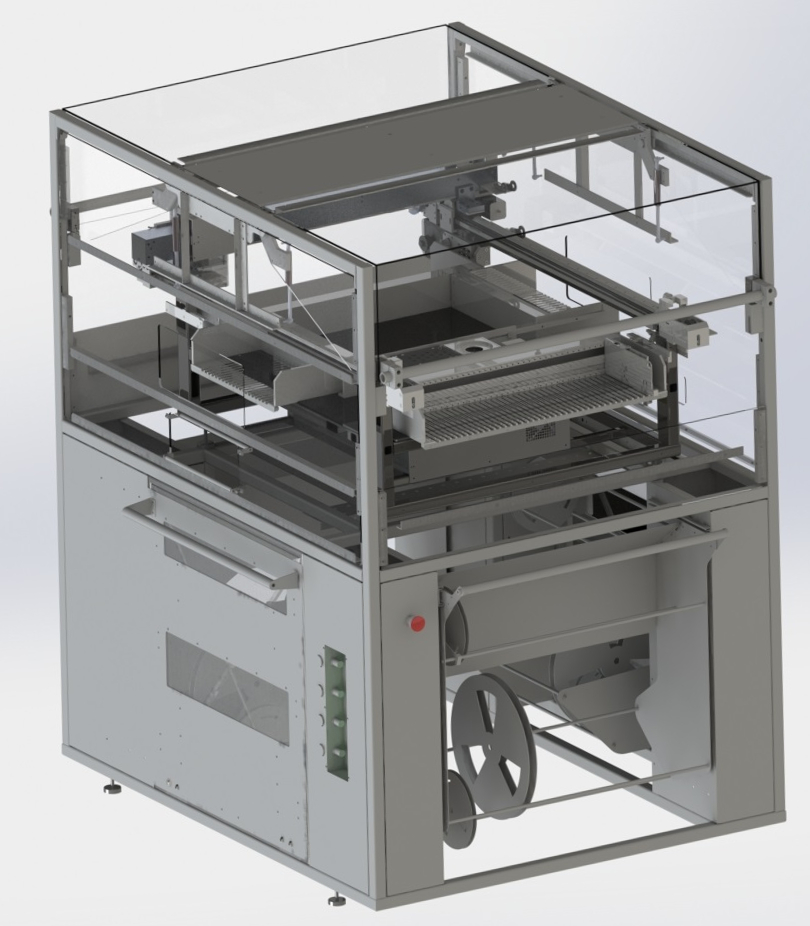

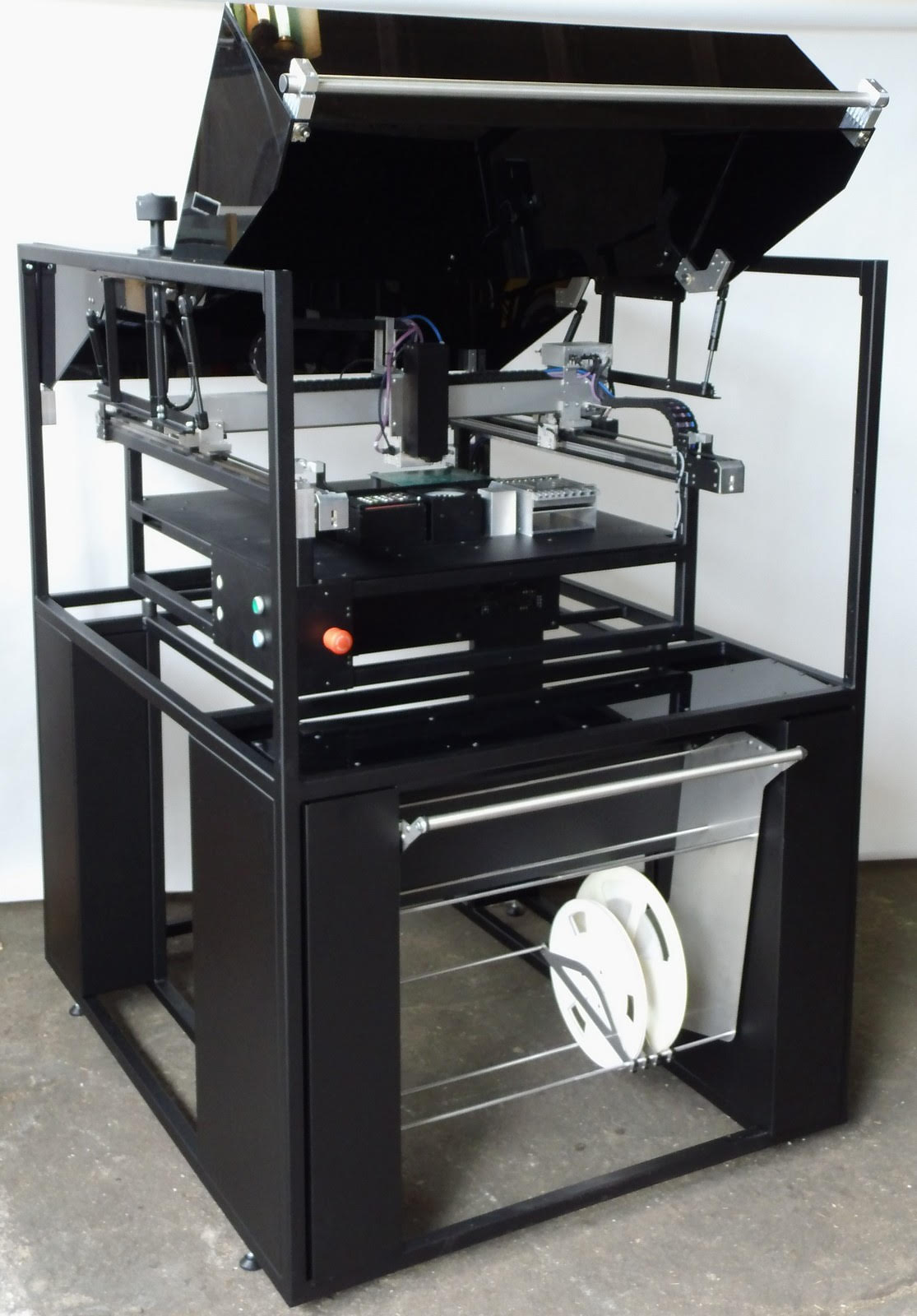

Automatic pick and place machine with dispensing head P50

Advanced SMT Placement and Dispensing Technology

Designed for precision and flexibility, the P50 supports simultaneous pick & place and dispensing operations with high placement accuracy and throughput. Its smart feeder system and integrated conveyor streamline production workflows, making it ideal for various component types and batch sizes.

Key Features

Up to 4 pick & place heads
Up to 2 dispensing heads with 8000 dots/h rate
Integrated adjustable-width conveyor
Automatic nozzle changer (12 tools)
Top fiducial camera system
Bottom optical alignment camera
Gerber and CAD editor support for dispensing and p&p
Teach-in mode with electronic manipulator
Smart feeder system with CAN Bus
SMEMA interface included
Operating system: Windows 10
Control panel with PC keyboard and mouse
Remote service via internet

P50 in Action

Watch the P50 demonstrate its simultaneous pick & place and dispensing capabilities, showcasing high-speed, precise component placement and solder paste dispensing in a production environment.

Specification
Max. PCB size	max. 660x480mm
Component range	from 0201 to 40x80mm
Minimum pitch	0,4mm
Components package	tapes / sticks / trays
Components centering	non-contact alignment
Placement rate	1 p&p head: up to 1800 cph; 2 p&p heads: up to 2800 cph; 4 p&p heads: up to 4800 cph
Dispensing rate	up to 8000 dots/h
Feeder capacity	up to 120 x 8mm automatic smart feeder
Resolution	X/Y-axis: 0,008mm (linear encoder); Z-axis: 0,02mm (linear encoder); Rotation: 0,01° (rotation encoder)
Placement accuracy	+/- 0,03mm
Dimensions and weight	1100 x 1300 x 1400 mm / ca. 165 kg
Supply	110-230V / 50-60Hz / 1650W / 0,6 MPa / min. 30 l/min
