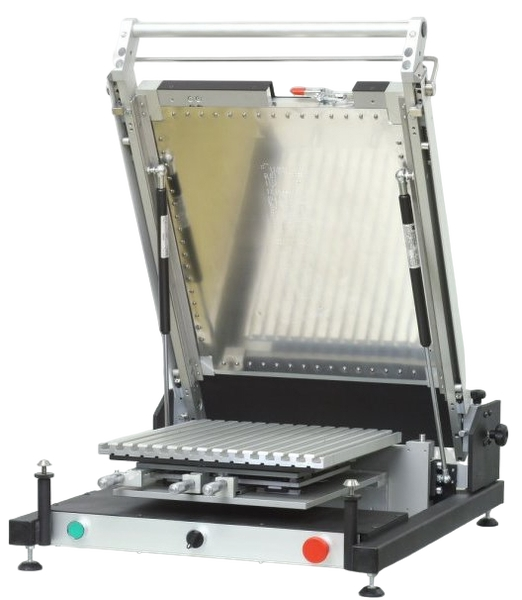

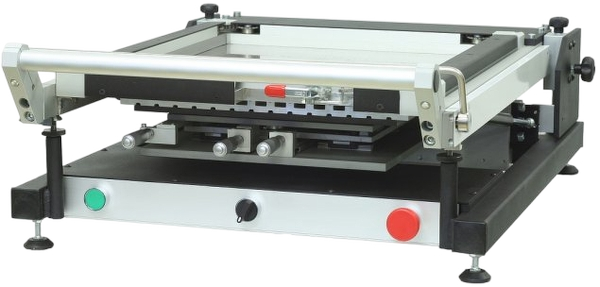

The Stencil Printer S10 is a high-precision manual stencil printer designed for small and medium-volume SMT production. It features a large printing area of up to 400 × 360 mm and supports PCB sizes up to 400 × 375 mm, enabling the handling of complex and densely packed boards.

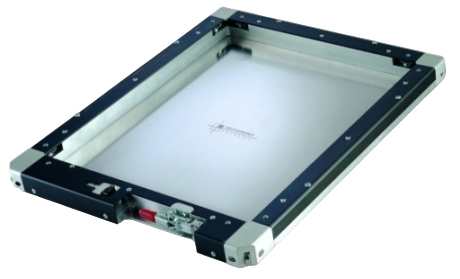

Equipped with a manual metal or rubber squeegee system, the S10 ensures uniform paste application across various stencil types — including frameless and perforated ones.
Its adjustable X/Y alignment (±12 mm), Theta rotation (±2.7°), and Z-axis off-contact range (0–24 mm) guarantee high printing accuracy, even for fine-pitch components (min. 0.4 mm). Despite its robust build, it remains compact with a footprint of 860 × 650 × 280 mm and a weight of 55 kg.
The S10 stencil printer is designed with the operator in mind — offering intuitive manual control and an ergonomic layout. Whether it's fine-pitch prototyping or small batch production, the operator benefits from comfortable handling and full visual control of the printing process. Its compact footprint fits seamlessly into electronics labs or production environments.
