Stencil printer S70

Lorem ipsum dolor sit amet consectetur adipisicing elit. Commodi, iusto?! Lorem ipsum dolor sit amet consectetur adipisicing elit. Commodi, iusto?!

Precise SMT Printing with Integrated Vision and Programmable Control

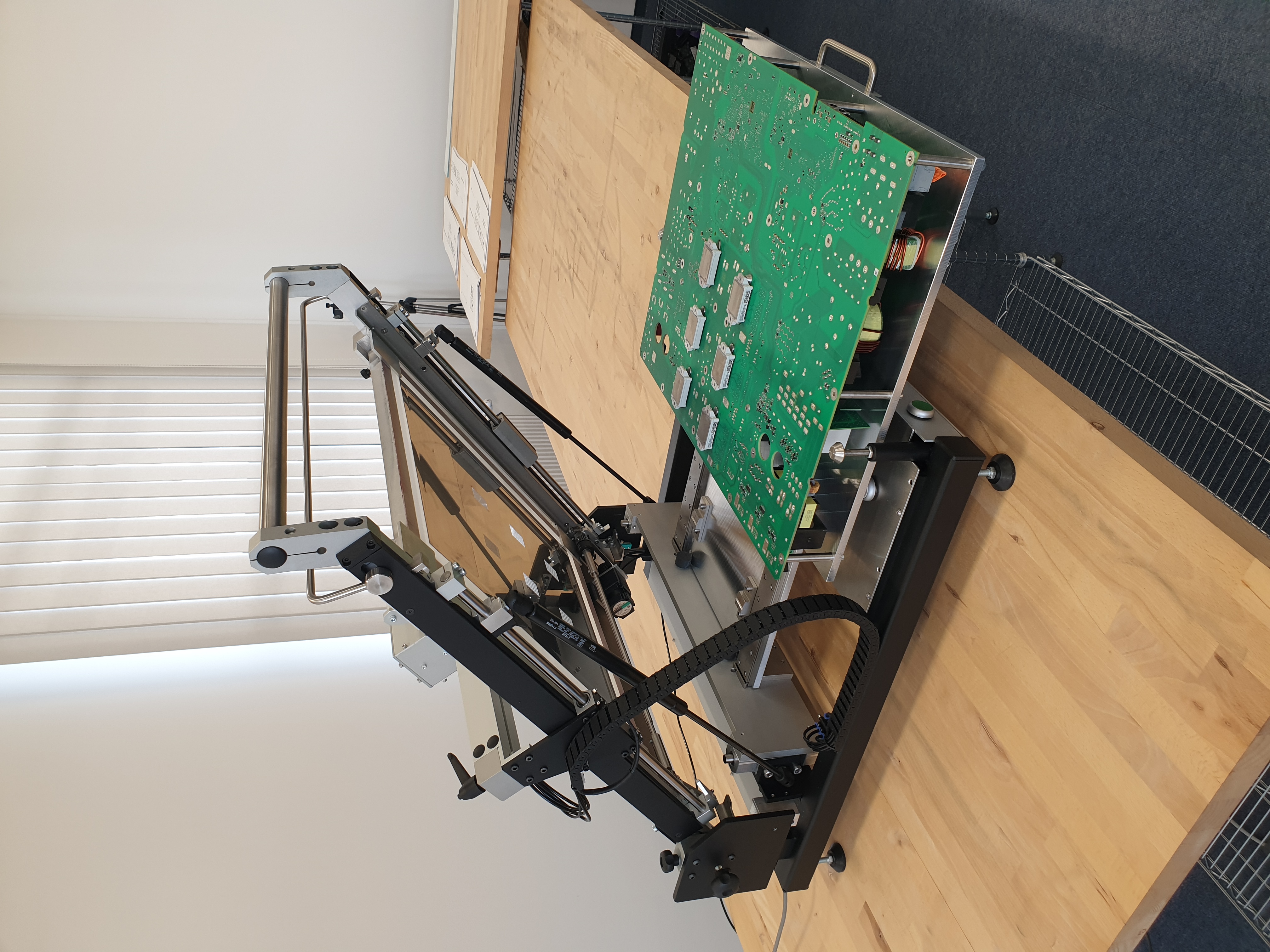

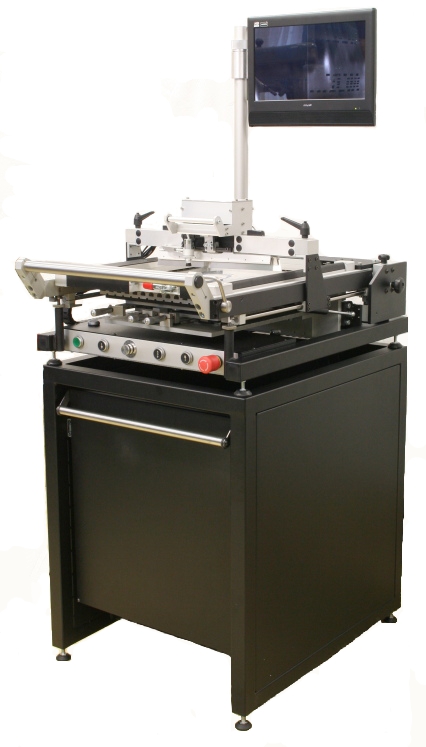

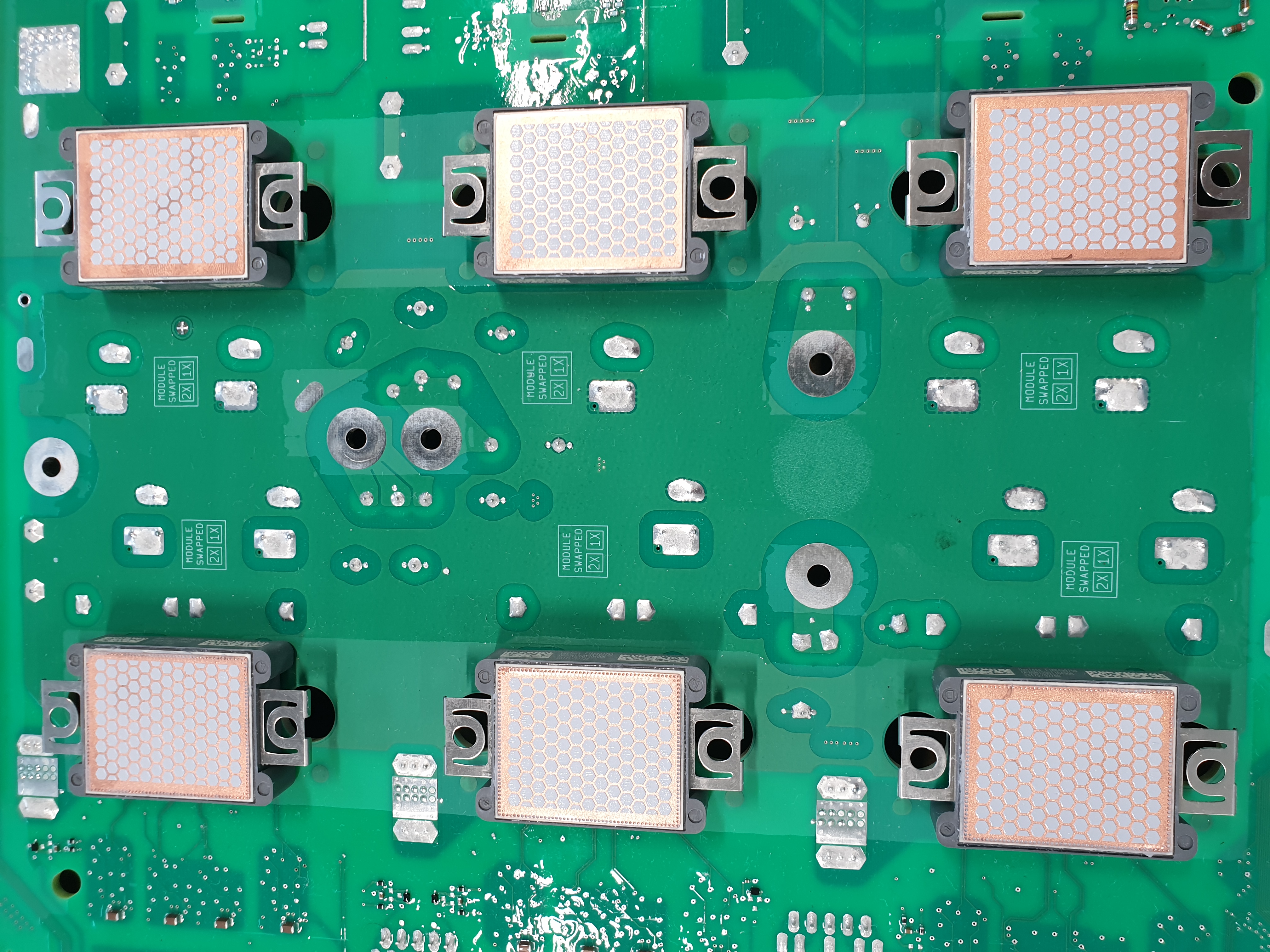

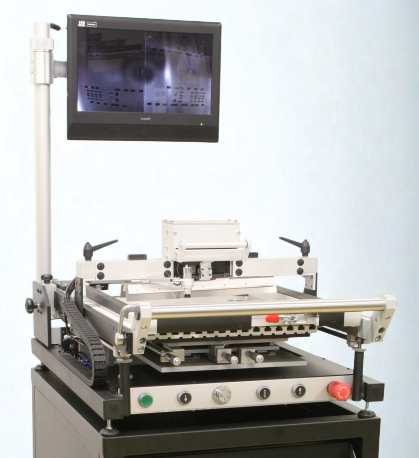

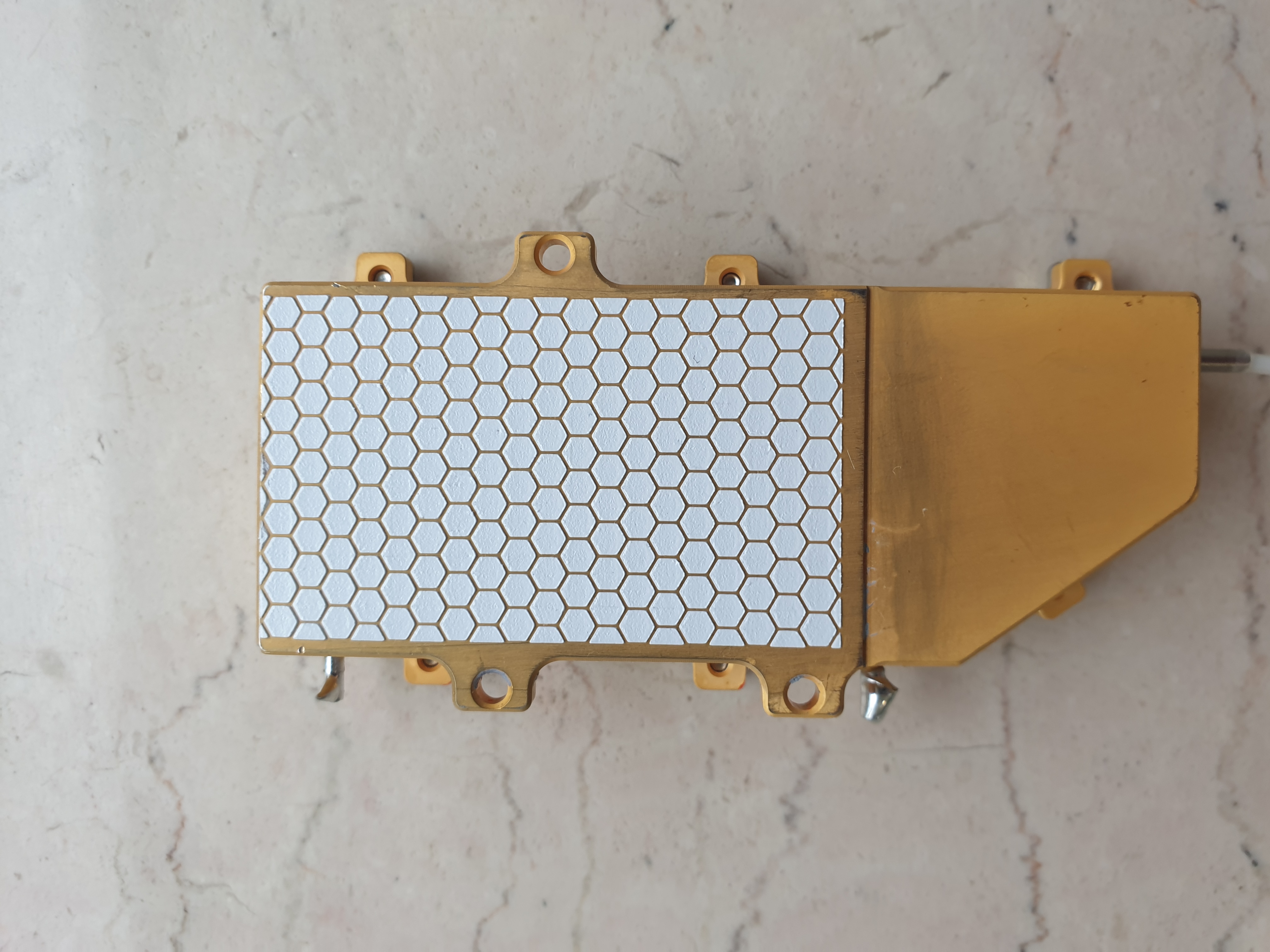

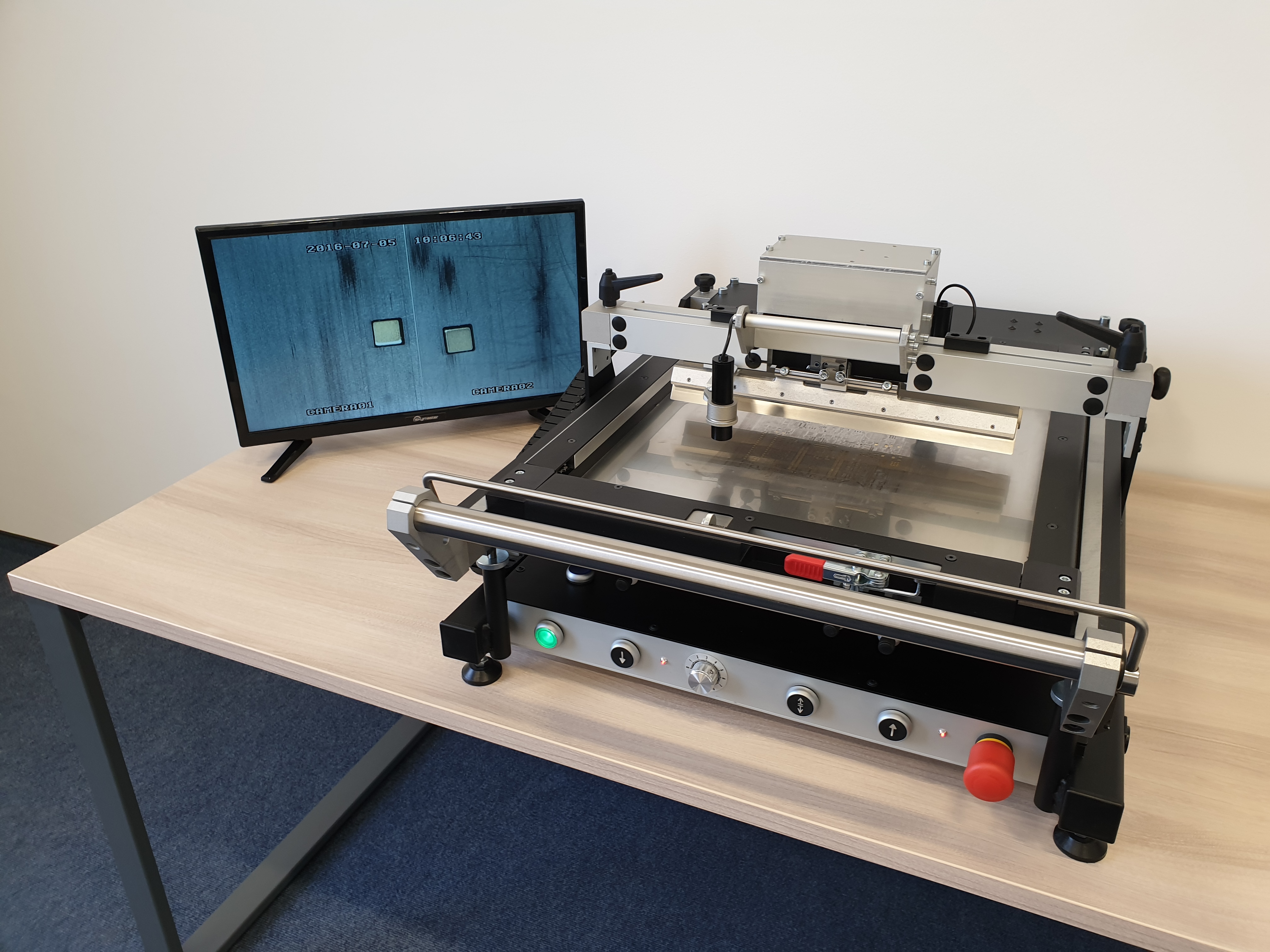

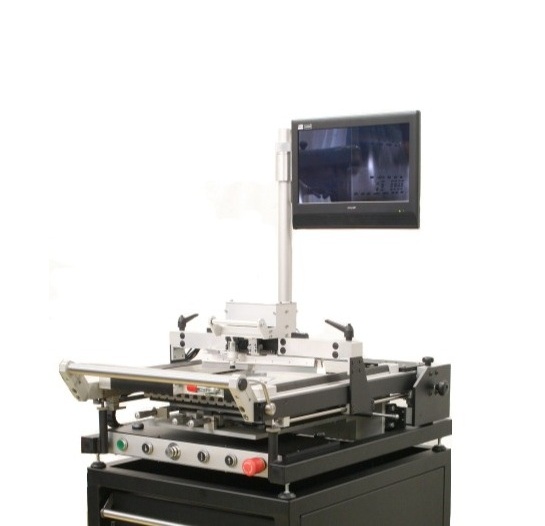

The S70 stencil printer is designed for small to medium volume SMT production. It offers a maximum frame size of 584 × 584 mm and supports PCBs up to 440 × 440 mm. The printer includes an integrated vision system with 2 CCD cameras and an LCD monitor to ensure precise alignment.

Equipped with an automatic reversible dual squeegee system, it supports metal or rubber blades with adjustable inclination and pressure for uniform paste application. The electric squeegee drive is programmable with speeds from 5 to 150 mm/s, allowing flexible print control.

Key Features

Integrated vision system with 2 CCD cameras and LCD monitor
Automatic reversible dual squeegee with universal holders
Programmable electric squeegee drive (5–150 mm/s)
Automatic table lowering with adjustable speed and pressure
Precise X/Y and Theta table adjustments with ±0.01 mm accuracy
Supports single and double-sided printing for various substances

Efficient SMT Printing with Advanced Vision and Automation

The S70 stencil printer delivers precise and reliable printing for small to medium SMT production volumes. Featuring an integrated dual CCD camera vision system and LCD monitor, it ensures accurate alignment and quality control. The automatic reversible dual squeegee with programmable electric drive offers adjustable speed and pressure for consistent paste application. User-friendly programming via panel and USB interface allows flexible print parameter settings, while the automatic table lowering system enhances efficiency and repeatability.

Specification

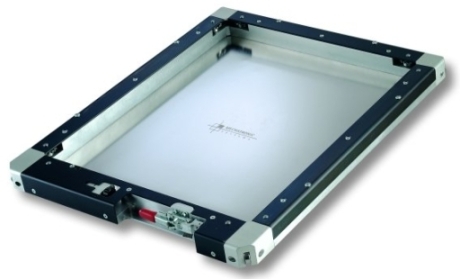

Frame size	max. 584 x 584 mm Rapid tensioning frame – 4 fold another types of frames may be accepted
PCB size	max. 440 x 440 mm
Visionsystem	Integrated 2 CCD cameras LCD monitor
Programming	print parameters adjustable by user panel programming of all others relevant print parameters via USB interface
Squeegee drive	electric drive control print speed 5-150 mm/s freely programmable squeegee travel
Squeegee changeover	Automatic reversible dual squeegee Universal holders for metal or rubber blade adjustable squeegee inclination 0 - 60 ° adjustable squeegee contact pressure 0 - 200 N
Printing	Single or double-sided boards
Table lowering	automatic table lowering / Z=10 mm lowering speed adjustable 0,2 - 4 mm/s adjustable table contact pressure 0 - 450 N
Table - X, Y / Theta adjustment	+/- 12 mm / +/- 2,7°
Off-Contact (Z-Axis) Range	0 - 24 mm
Table adjustment accuracy	+/- 0,01 mm
Supply	Compressed air 8 bar
Dimensions and weight	860 x 750 x 450 mm / ca. 95 kg
Application area	suitable for small and medium volume production screen- or stencilprinting of glue, solder paste or another substances qualified for fine pitch components minimum pitch of pads 0,3 mm
