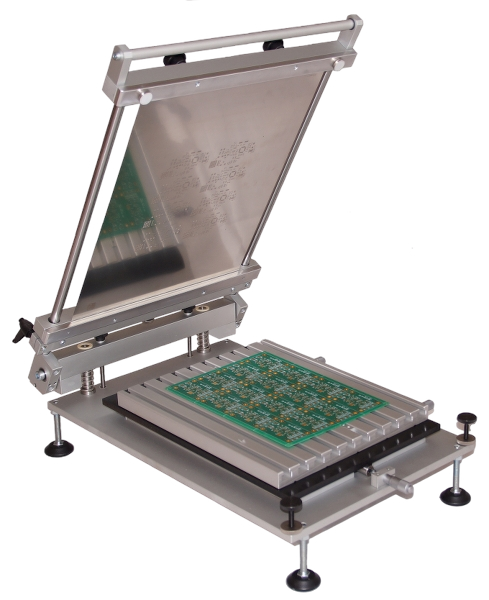

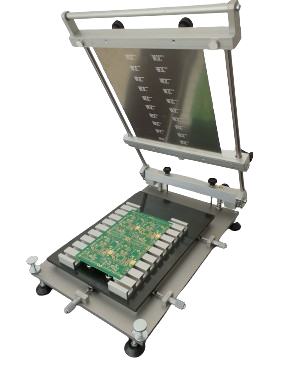

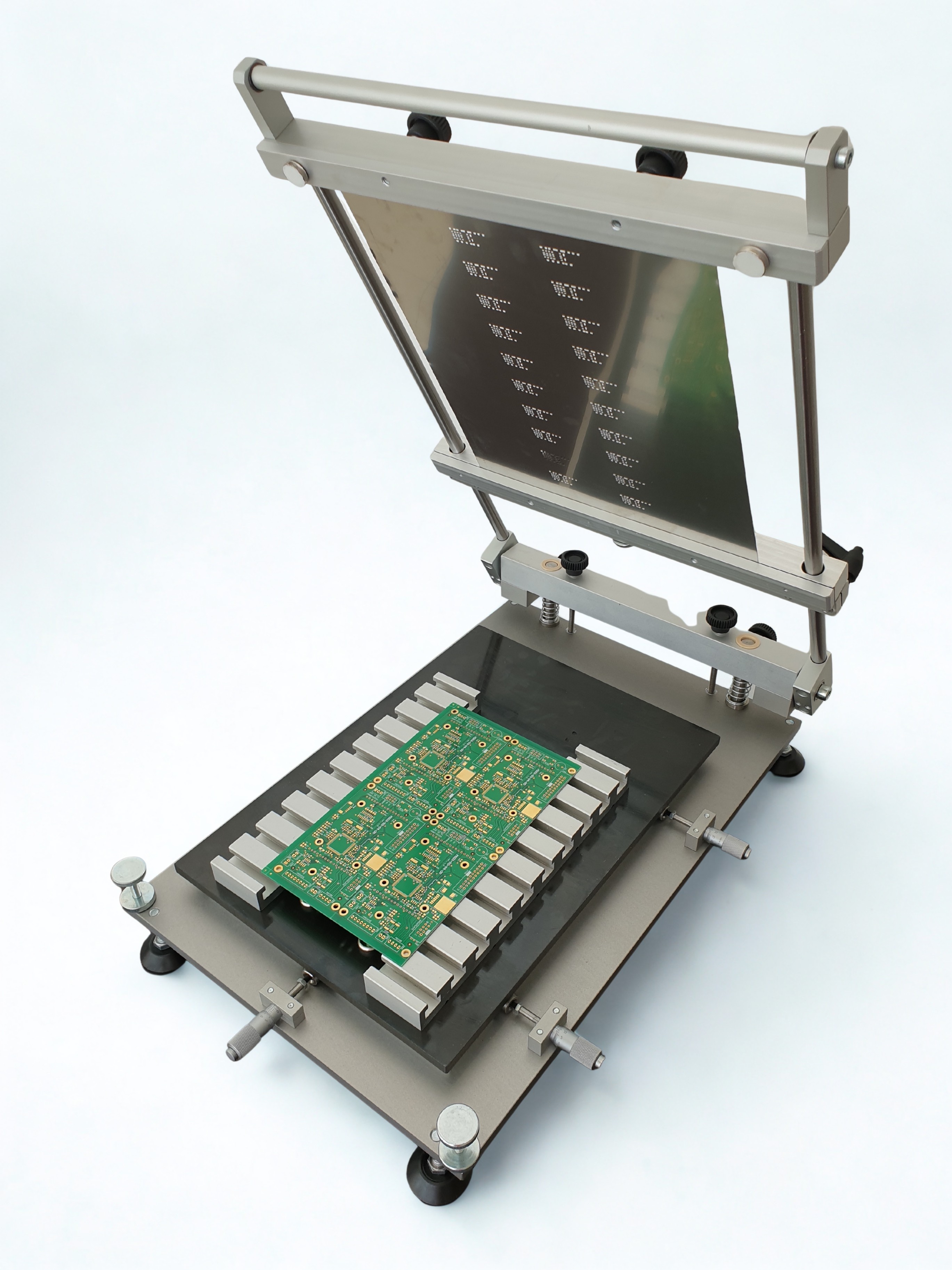

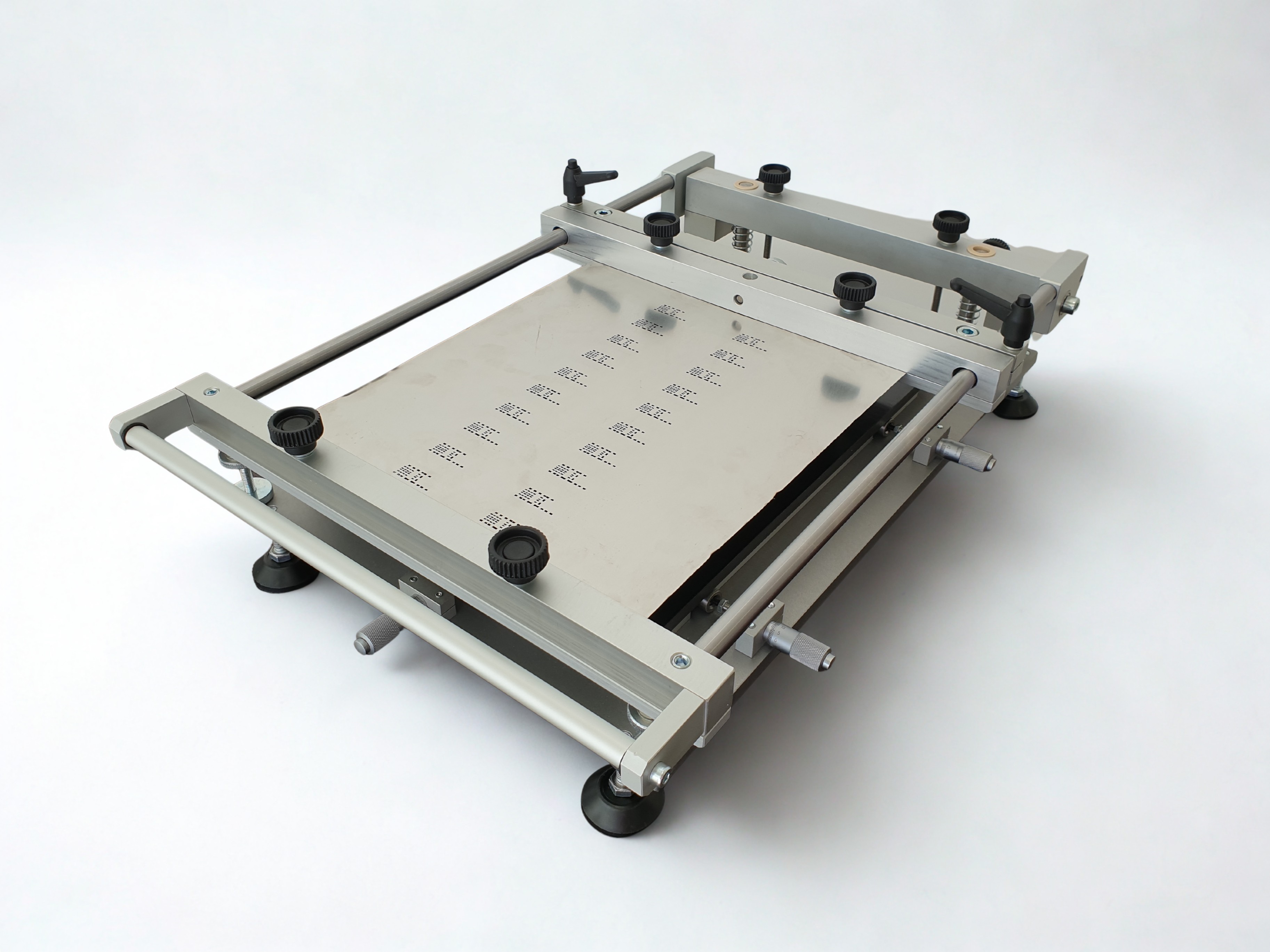

The SMT stencil printer S1 is a versatile and reliable manual stencil printer for prototyping and small-batch SMT production.
The adjustable clamping system and precise X/Y/Theta alignment ensure consistent paste application with both metal and polyimide stencils.
Despite its compact dimensions (530 × 370 × 130 mm) and light weight (20 kg), the S1 is ideal for rapid prototyping and small-batch production of components with fine pitch.
The S1 delivers clean and consistent printing results, even with demanding components such as µBGA with a 0.4 mm pitch and 0201 package components. Thanks to the precise alignment system, even the smallest contact areas are printed with high accuracy, preventing short circuits.

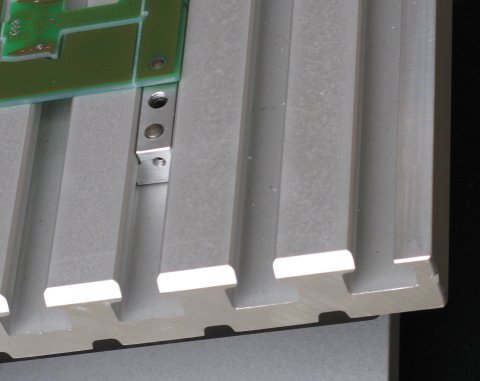

The flexible PCB mounting system ensures secure and repeatable PCB placement during the printing process. It is compatible with various PCB sizes and types, enabling quick clamping and easy repositioning essential for prototypes and small production runs.

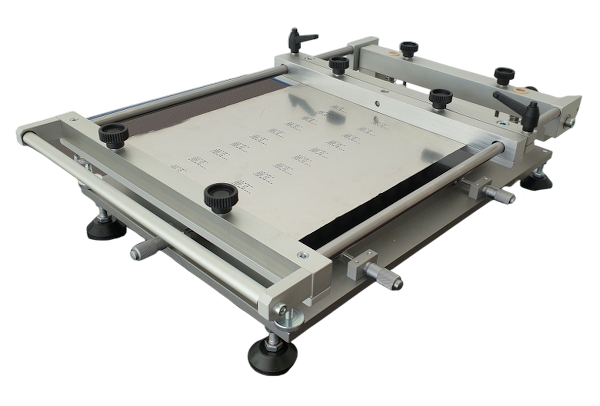

Mounting perforated and unperforated stencils is quick and intuitive thanks to the S1's adjustable clamping frame. The dual clamping mechanism ensures firm and consistent contact, allowing for precise paste application every time, regardless of whether standard or custom stencils are used.
Adjusting reference marks

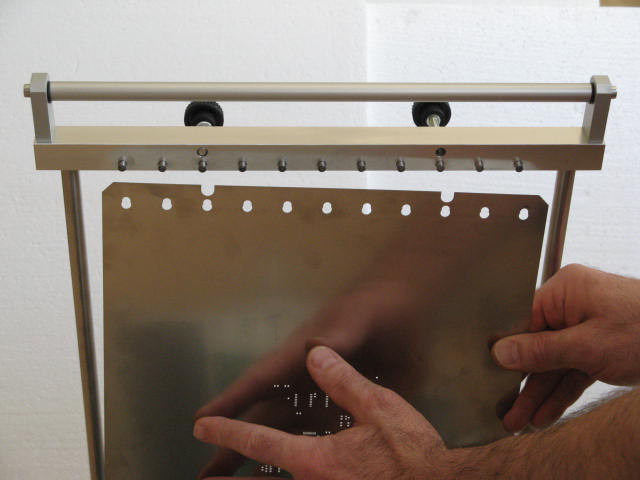

Stencil mounting demo

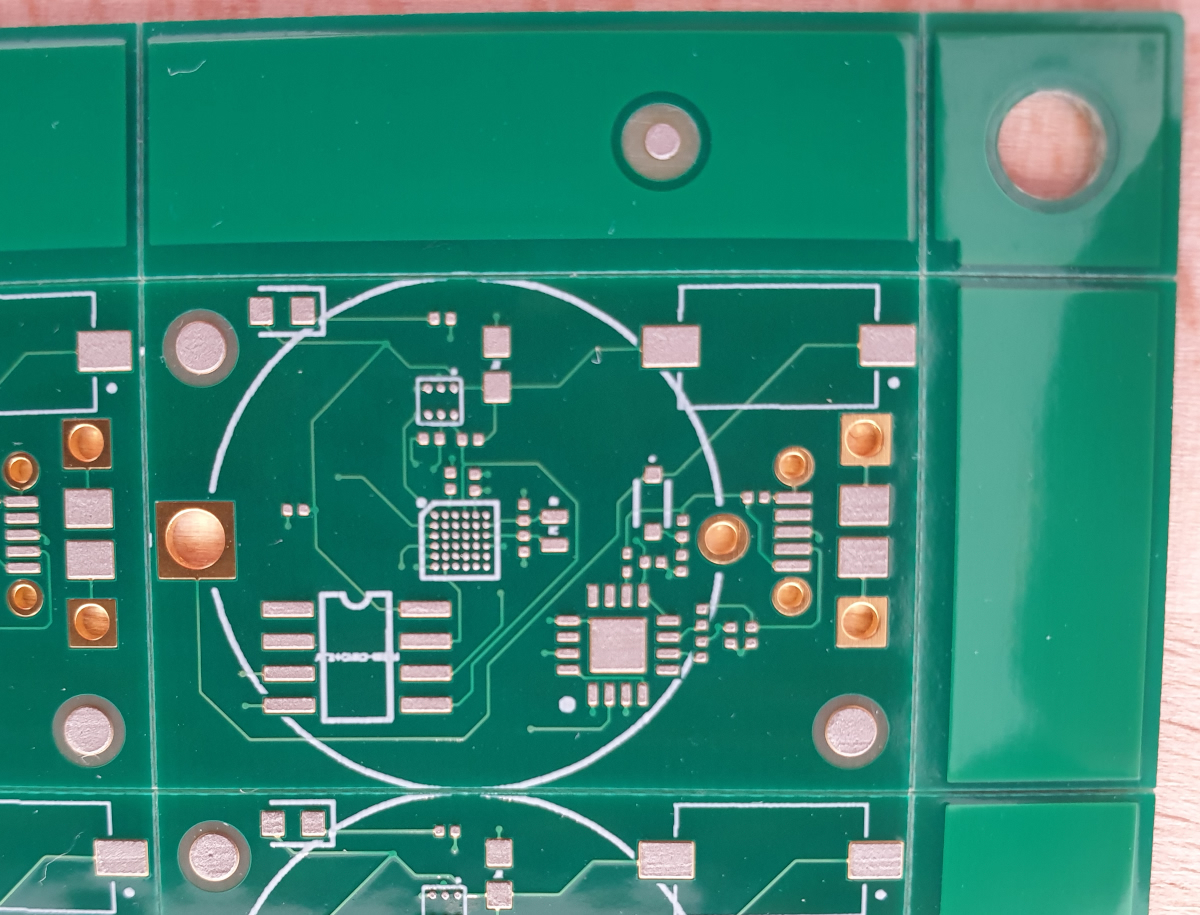

Precision printing results
