Stencil printer SXL

High-Capacity Stencil Printer with Advanced Vision and Precision Control

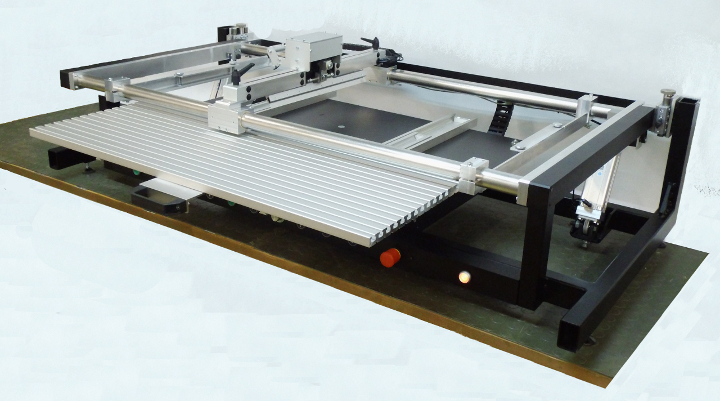

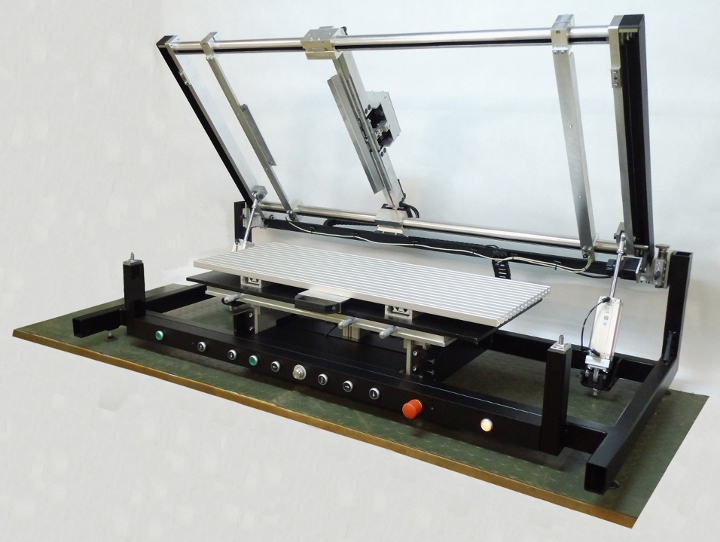

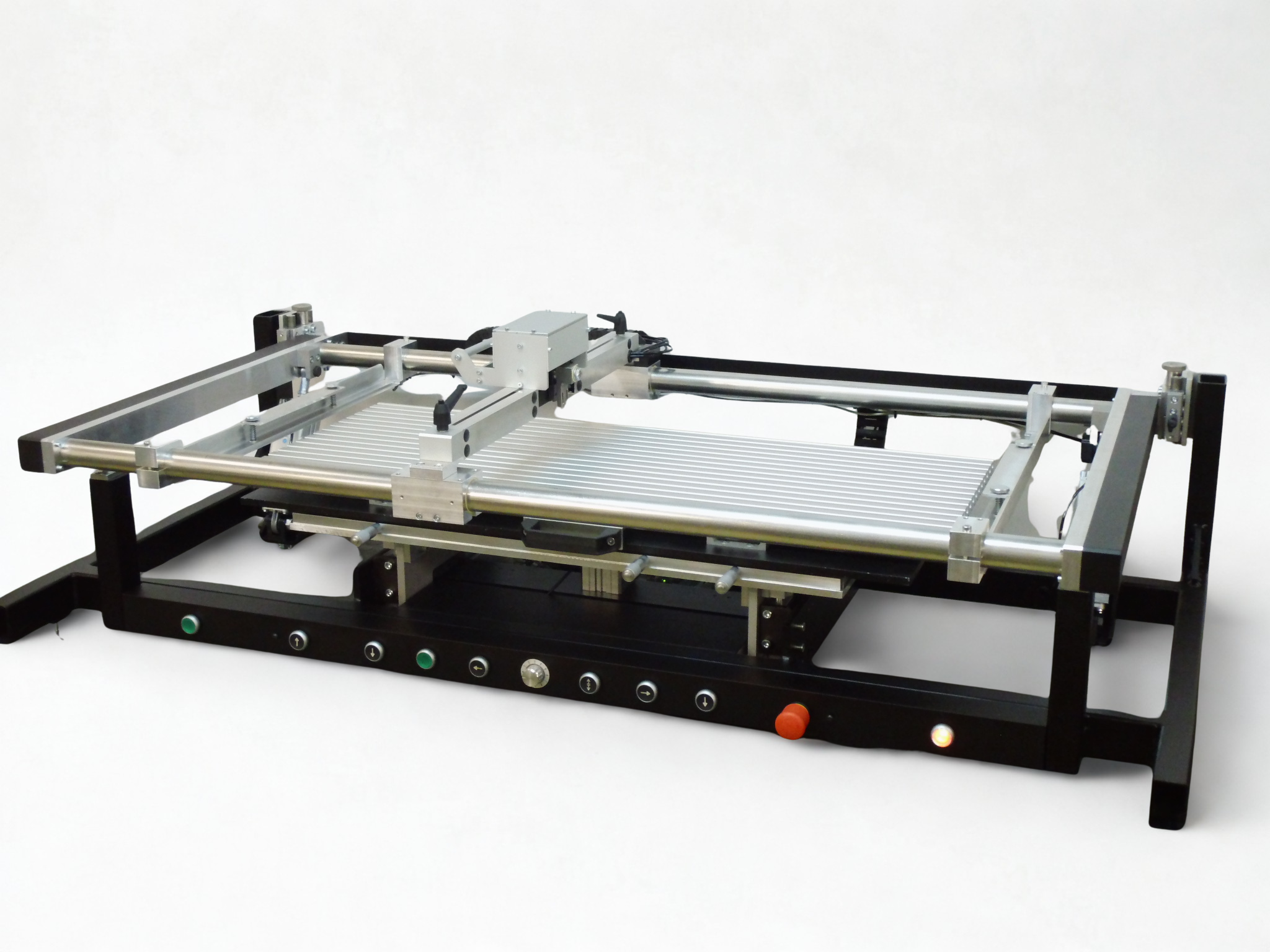

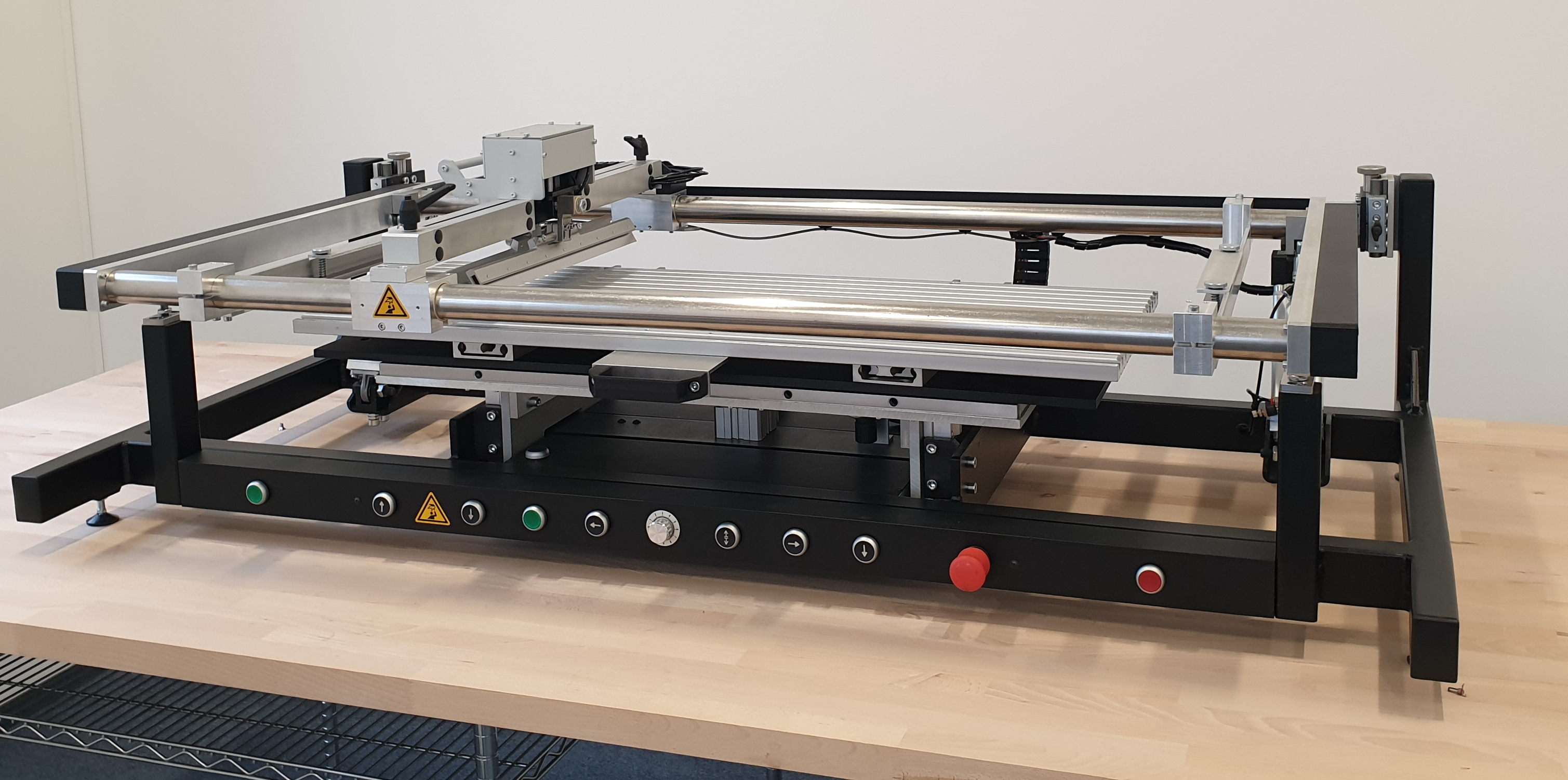

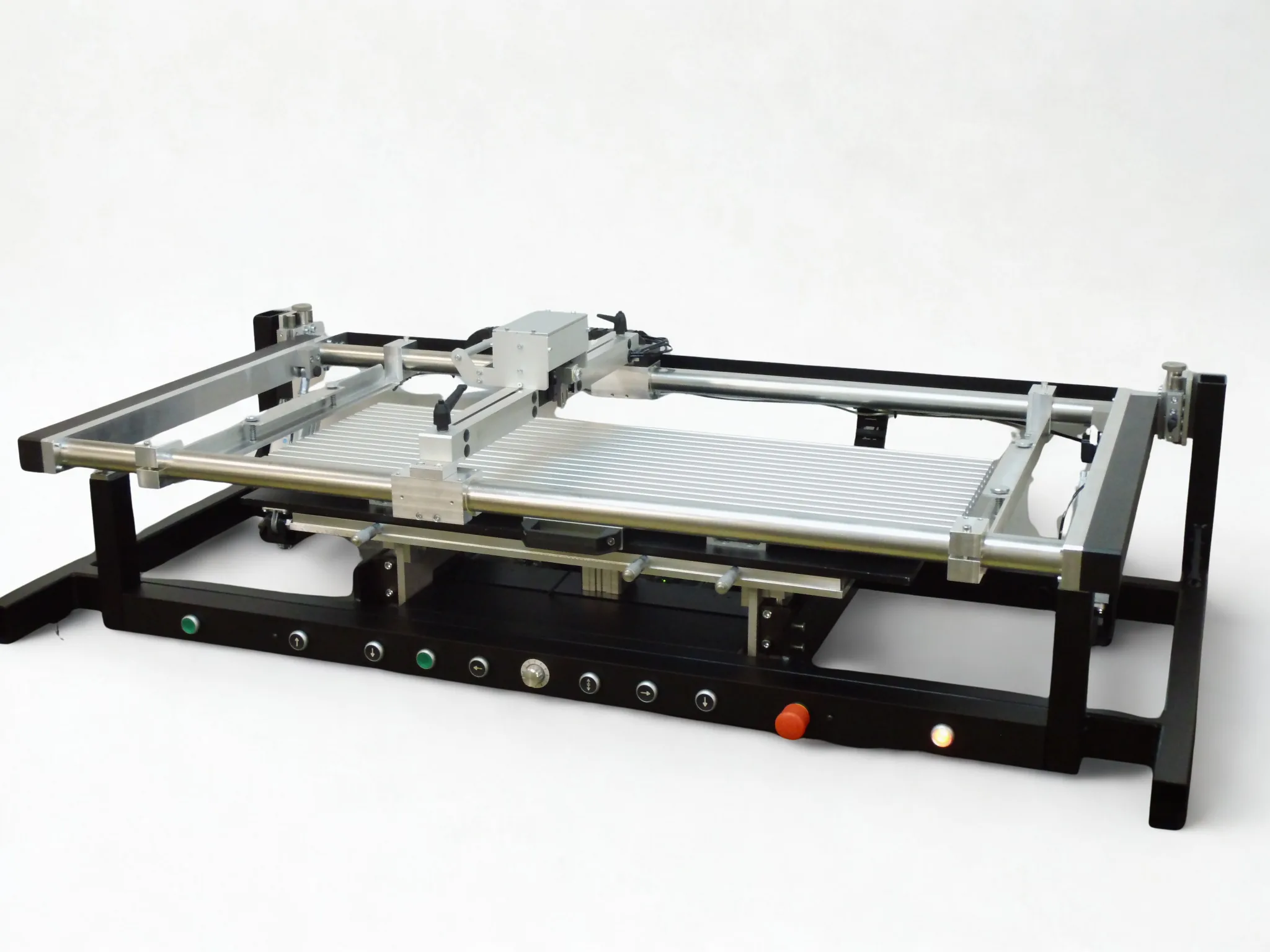

The S70 stencil printer is designed for large PCBs with a maximum size of 1000 × 480 mm and a variable frame system up to 1200 × 600 mm. It features integrated dual cameras and an LCD monitor to ensure precise alignment. The printer offers a programmable electric squeegee drive with speeds from 5 to 150 mm/s and automatic reversible dual squeegee with adjustable angle and pressure for consistent paste application.

With accurate X/Y and Theta adjustments and a wide off-contact range, the S70 guarantees excellent printing quality even for fine-pitch components down to 0.3 mm. Its automatic table lowering with adjustable speed and pressure enhances process repeatability. Despite its large capacity, the printer maintains a compact footprint and weighs approximately 125 kg.

Key Features

• Supports large PCBs up to 1000 × 480 mm and variable frame sizes up to 1200 × 600 mm
• Integrated dual camera vision system with LCD monitor for precise alignment
• Programmable electric squeegee drive with speeds from 5 to 150 mm/s
• Automatic reversible dual squeegee with adjustable inclination (0–60°) and contact pressure (0–200 N)
• Automatic table lowering with adjustable speed and contact pressure
• High precision X/Y (±12 mm) and Theta (±2.7°) adjustments with ±0.01 mm accuracy
